22
ENGLISH

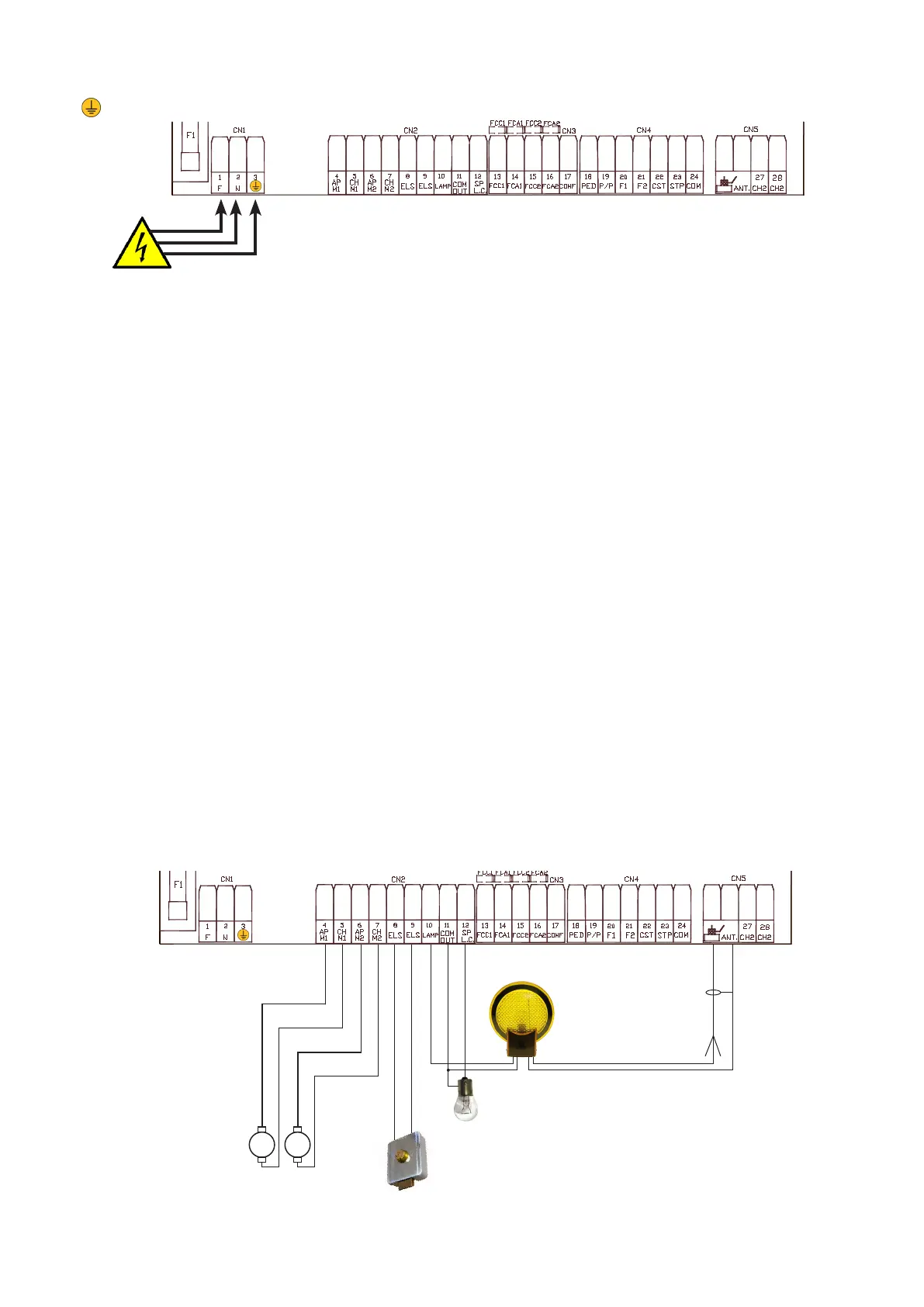

CONNECTOR CN1
1) F Phase 95-255 Vac
2) N Neutral 95-255 Vac
3) Ground
CONNECTOR CN2
4) AP M1 M1 motor connection
5) CH M1 M1 motor connection
6) AP M2 M2 motor connection
7) CH M2 M2 motor connection
MotorM2startsrstduringclosing
8) ELS Electric lock output connection
9) ELS Electric lock output connection
At the opening command, it turns on for 1 sec. Before activating door M1
10) LAMP Flasher connection max. 25W 24Vdc
11) COM OUT Common link Blinking light gate open/courtesy light
12) SP LC Gate open indicator / courtesy light max 3Watt 24Vdc
for higher power levels, it is recommended to connected a relay sized for the applied load to
this output
230Vac
MM
RG58
Luce cortesia
Lampeggiante
Antenna
