147
Keysight InfiniiVision 2000 X-Series Oscilloscopes
User's Guide
11 Trigger Mode/Coupling
To select the Auto or Normal trigger mode / 148
To select the trigger coupling / 149
To enable or disable trigger noise rejection / 151
To enable or disable trigger HF Reject / 151
To set the trigger holdoff / 152
External Trigger Input / 152

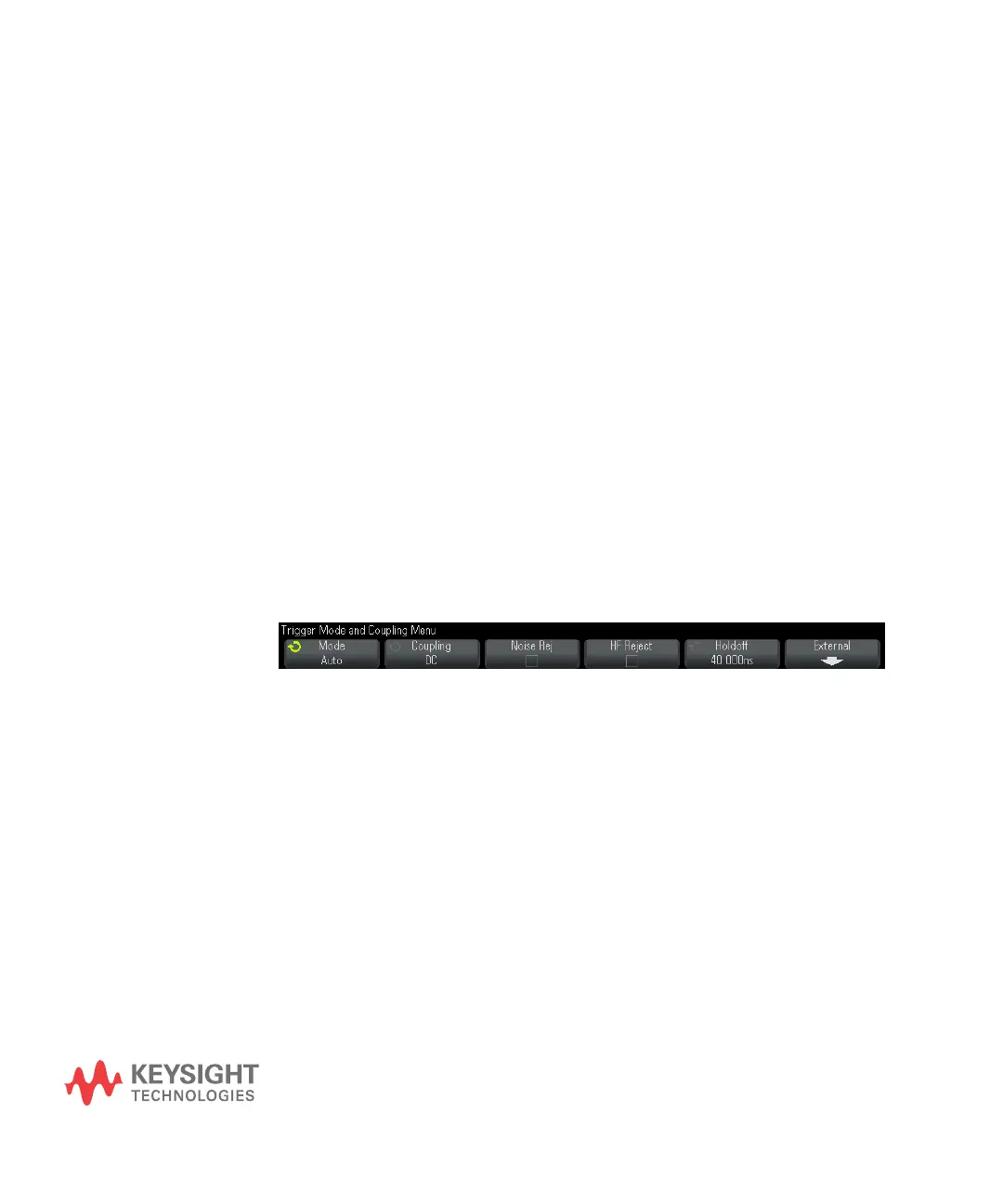

To access the Trigger Mode and Coupling Menu:
• In the Trigger section of the front panel, press the [Mode/Coupling] key.
Noisy Signals If the signal you are probing is noisy, you can set up the oscilloscope to reduce the
noise in the trigger path and on the displayed waveform. First, stabilize the
displayed waveform by removing the noise from the trigger path. Second, reduce
the noise on the displayed waveform.
1 Connect a signal to the oscilloscope and obtain a stable display.
2 Remove the noise from the trigger path by turning on high-frequency rejection
(“To enable or disable trigger HF Reject" on page 151), low-frequency
rejection (“To select the trigger coupling" on page 149), or “To enable or
disable trigger noise rejection" on page 151.
3 Use “Averaging Acquisition Mode" on page 164 to reduce noise on the
displayed waveform.
