Web Interface 21

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 271

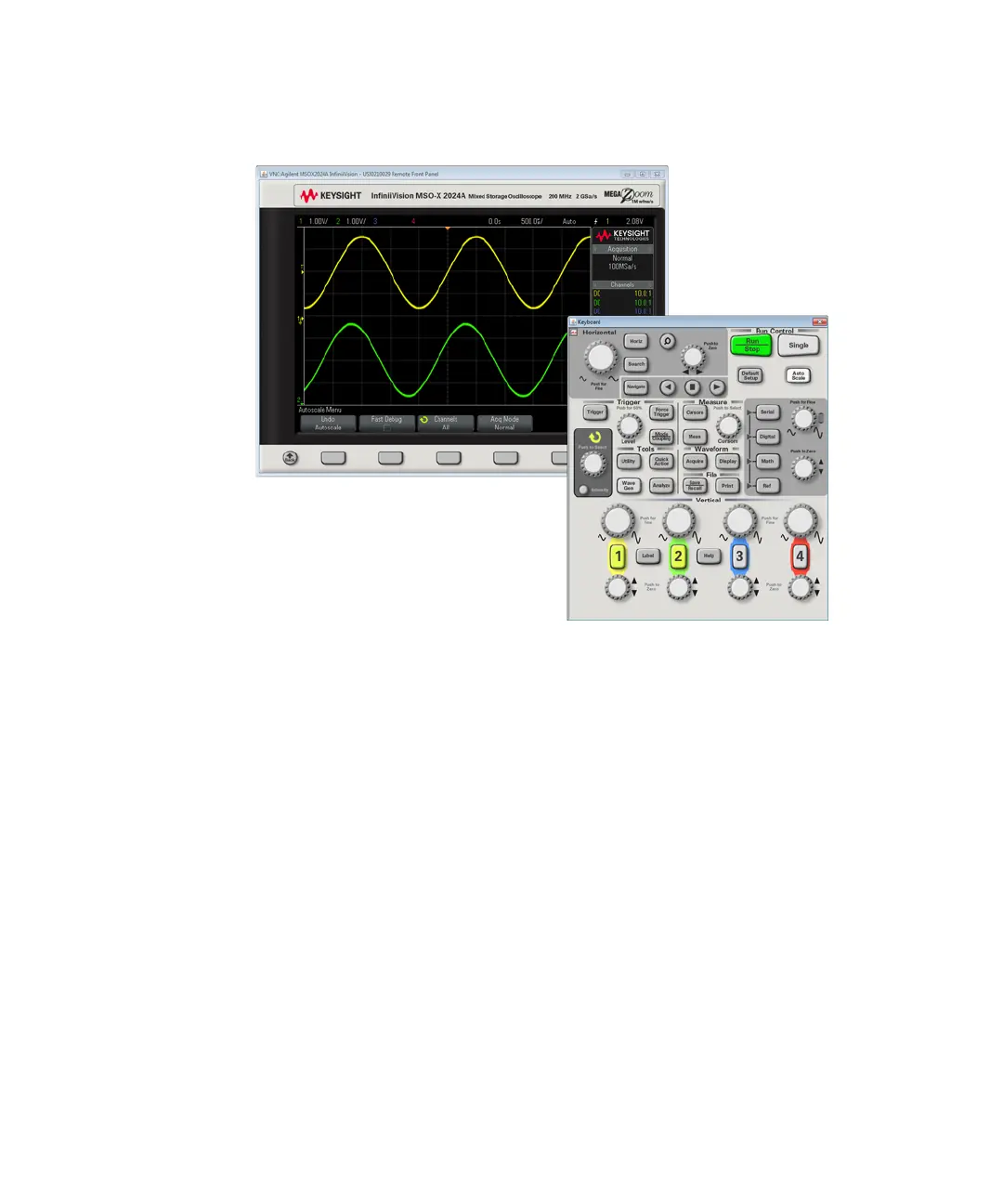

Simple Remote Front Panel

To operate the oscilloscope using the web interface's Simple Remote Front Panel:

1 Access the oscilloscope's web interface (see “Accessing the Web Interface" on

page 268).

2 When the oscilloscope's web interface is displayed, select Browser Web Control,

then select Simple Remote Front Panel. After a few seconds the Remote Front

Panel appears.

3 Use the Main Menu and the Function Keys to control the oscilloscope. To view

Quick Help, right-click on a softkey.
