Web Interface 21

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 277

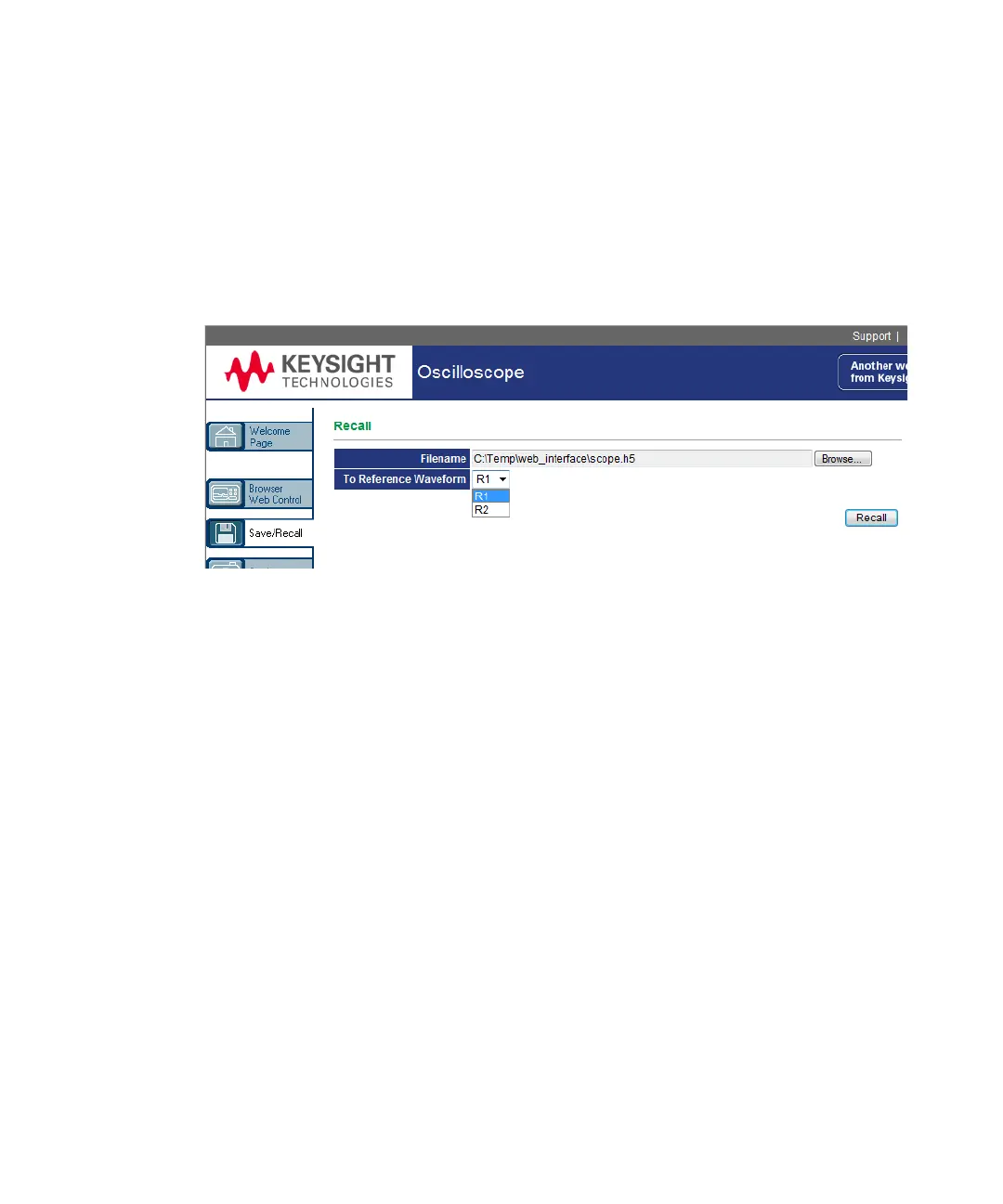

4 On the Recall page:

a Click Browse....

b In the "Choose file" dialog, select the file you want to recall; then, click Open.

c When recalling reference waveform data files, select the To Reference

Waveform location.

d Click Recall.

Get Image

To save (or print) the oscilloscope's display from the web interface:

1 Access the oscilloscope's web interface (see “Accessing the Web Interface" on

page 268).

2 When the oscilloscope's web interface is displayed, select the Get Image tab

from the left side of the Welcome screen. After a delay of several seconds, the

oscilloscope's screen image will be displayed.

3 Right-click on the image and select Save Picture As... (or Print Picture...).

4 Select a storage location for the image file and click Save.
