224 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

17 Waveform Generator

AM Depth refers to the portion of the amplitude range that will be used by the

modulation. For example, a depth setting of 80% causes the output amplitude

to vary from 10% to 90% (90% – 10% = 80%) of the original amplitude as the

modulating signal goes from its minimum to maximum amplitude.

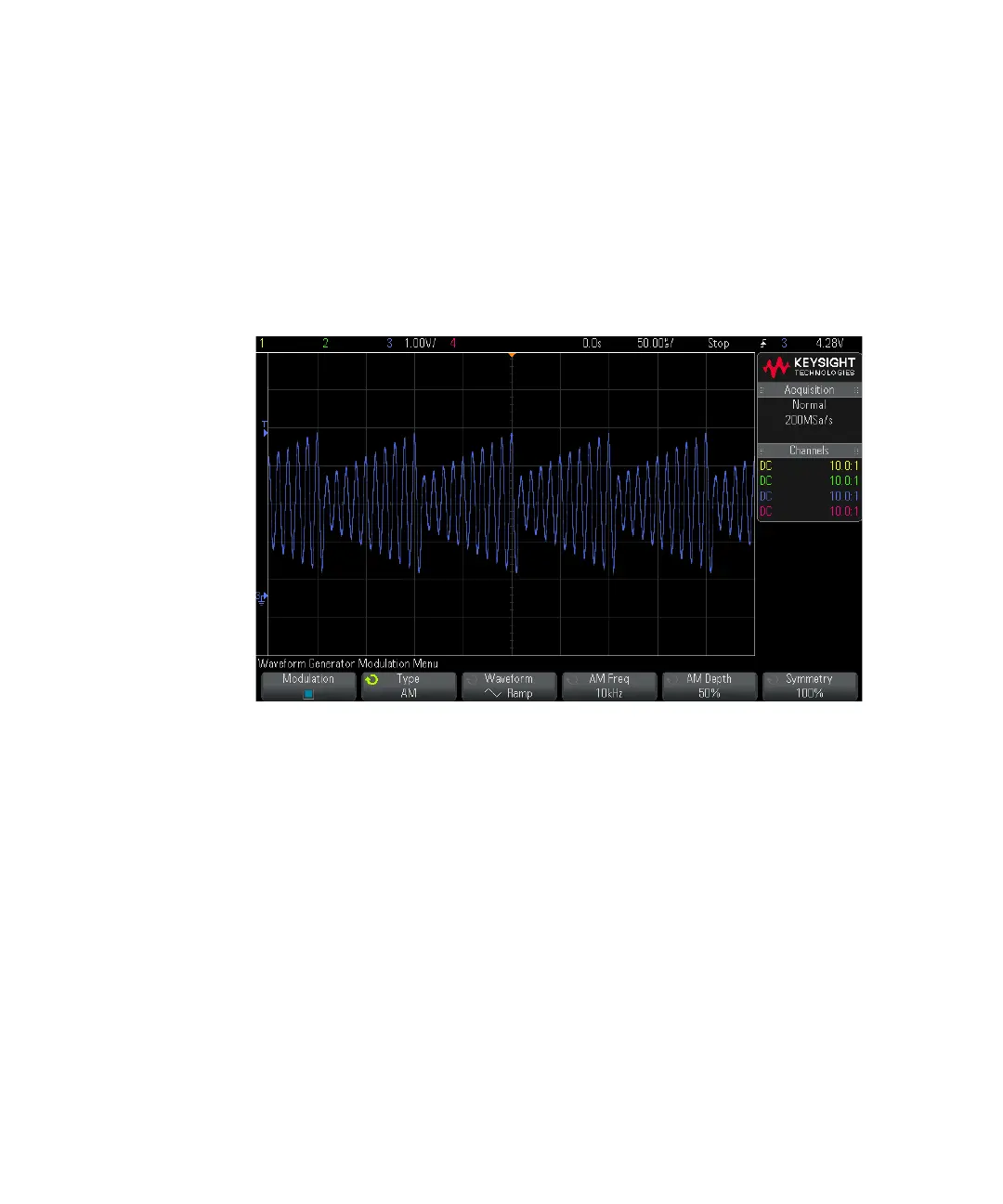

The following screen shows an AM modulation of a 100 kHz sine wave carrier

signal.

To set up Frequency Modulation (FM)

In the Waveform Generator Modulation Menu (under [Wave Gen] > Settings >

Modulation):

1 Press the Type softkey and turn the Entry knob to select Frequency Modulation

(FM).

2 Press the Waveform softkey and turn the Entry knob to select the shape of the

modulating signal:

• Sine

• Square

• Ramp

• Sine Cardinal
