335

Keysight InfiniiVision 2000 X-Series Oscilloscopes

User's Guide

25 UART/RS232 Triggering

and Serial Decode

Setup for UART/RS232 Signals / 335

UART/RS232 Triggering / 337

UART/RS232 Serial Decode / 339

UART/RS232 triggering and serial decode requires Option COMP or the

DSOX3COMP upgrade.

Setup for UART/RS232 Signals

To set up the oscilloscope to capture UART/RS232 signals:

1 Press [Label] to turn on labels.

2 Press [Serial].

3 Press the Mode softkey; then, select UART/RS232 trigger type.

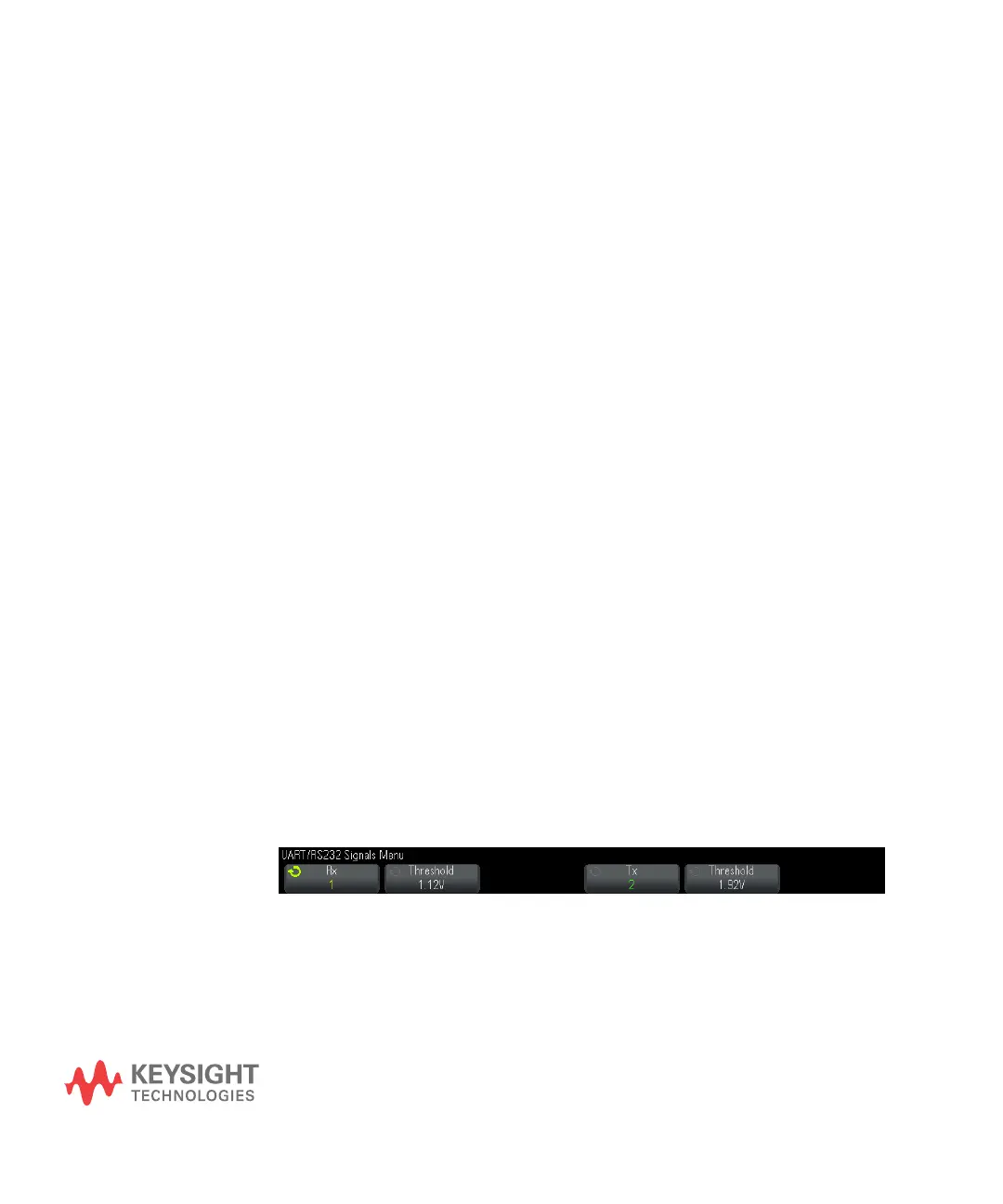

4 Press the Signals softkey to open the UART/RS232 Signals Menu.
