Web Interface 21

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 273

Remote Programming via the Web Interface

To send remote programming commands to the oscilloscope via the SCPI

Commands applet window:

1 Access the oscilloscope's web interface (see “Accessing the Web Interface" on

page 268).

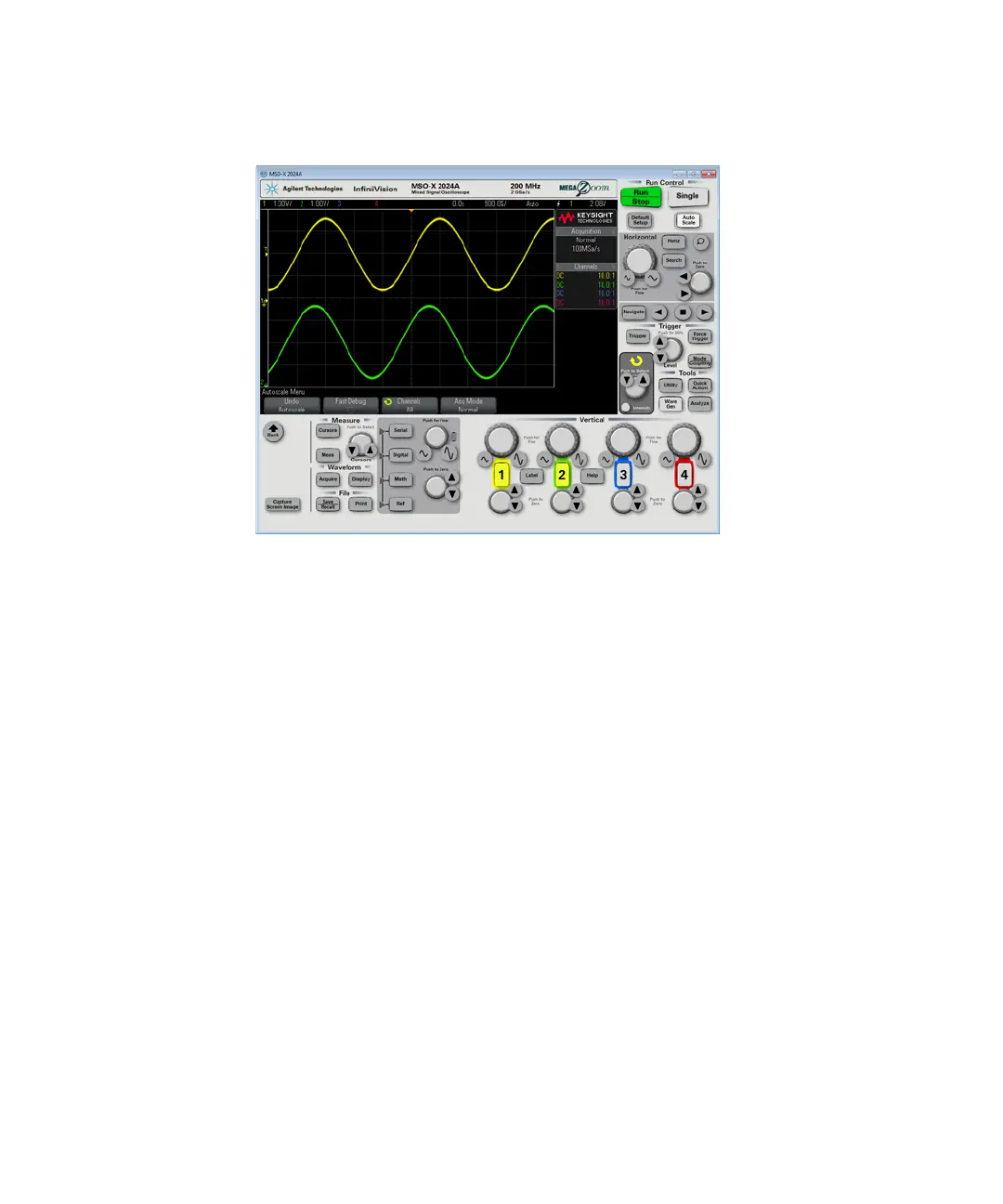

2 When the oscilloscope's web interface is displayed, select Browser Web Control,

then select Remote Programming.

The SCPI Commands applet appears within the browser web page.
