2Operation and Features
68 E364xA User’s and Service Guide
Storing and Recalling Operating States
You can store up to five different operating states in non- volatile storage
locations. When shipped from the factory, storage locations 1 through 5 are
empty. You can name a location from the front panel or over the remote interface
but you can only recall a named state from the front panel.
The following steps show you how to store and recall an operating state.
To cancel the store/recall operation, select the EXIT menu by turning the knob
and then pressing or letting the display time- out.
Front panel operation
Storing the operating state

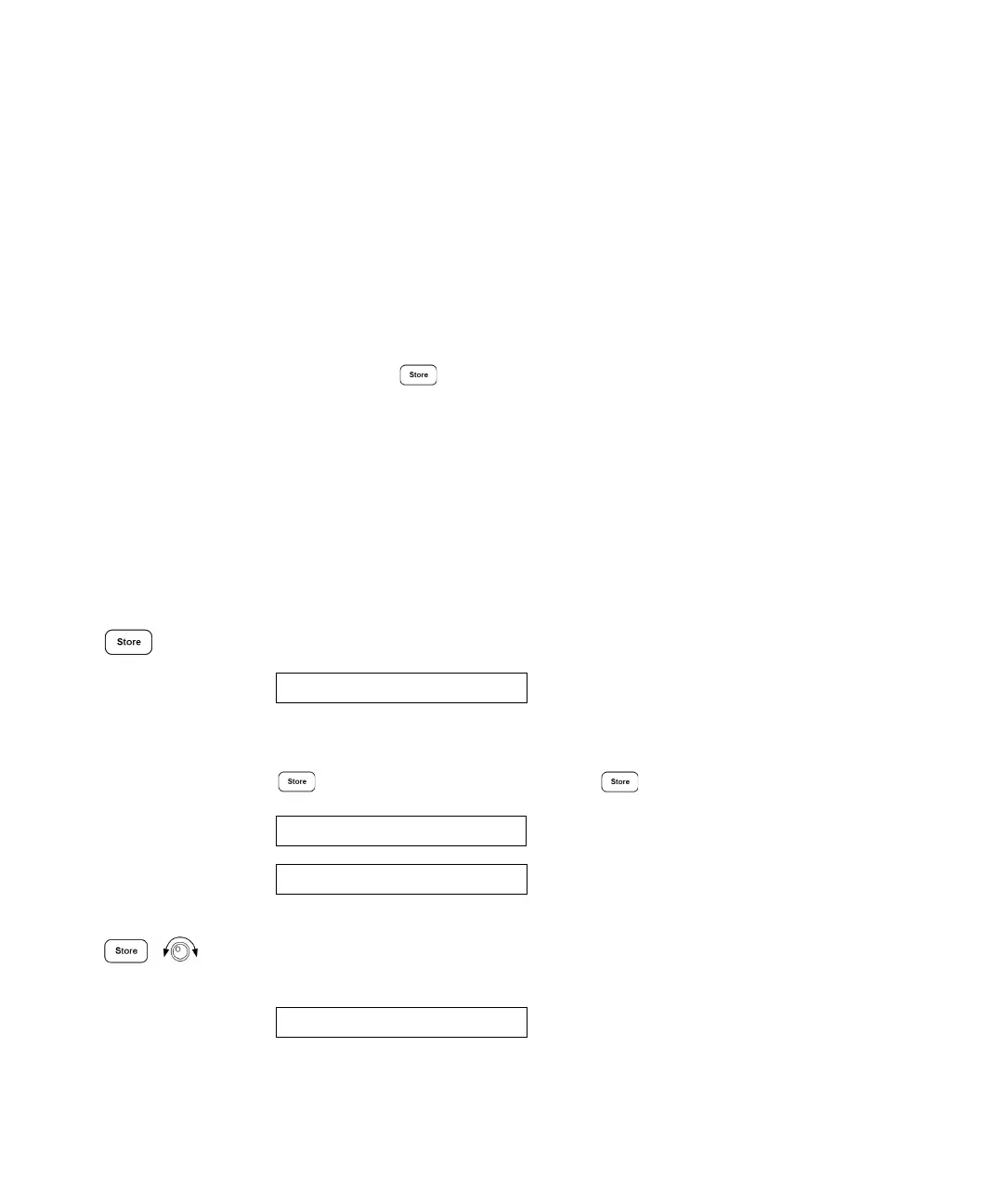

1 Set up the power supply for the desired operating state.
The storage feature “remembers” the output voltage range selection, the limit
value settings of voltage and current, output on/off state, OVP on/off state,
and OVP trip levels.
2 Turn on the storage mode.
From the front panel, you can assign names (up to nine characters) to each of
the five stored states. Turn the knob until NAME STATE appears and press
to select the locations. Then press to name the locations.
3 Select the storage location
Turn the knob to the right to specify the memory location 2.
STORE STATE
NAME STATE
1:P15V_TEST
2: STATE2
To Next Page
