Keysight Technologies E5061B User Manual

Keysight E5061B Network Analyzers 23
Troubleshooting
No Display Troubleshooting
No Display Troubleshooting
If the E5061B displays nothing despite it is powered from proper ac power line,
isolate the failure in accordance with the procedure shown in Figure 2-3.
Connect the keyboard to the E5061B rear panel connector, turn the power on
and start trouble isolation. The methods of trouble isolation are described in
the procedural step 1 to 6.

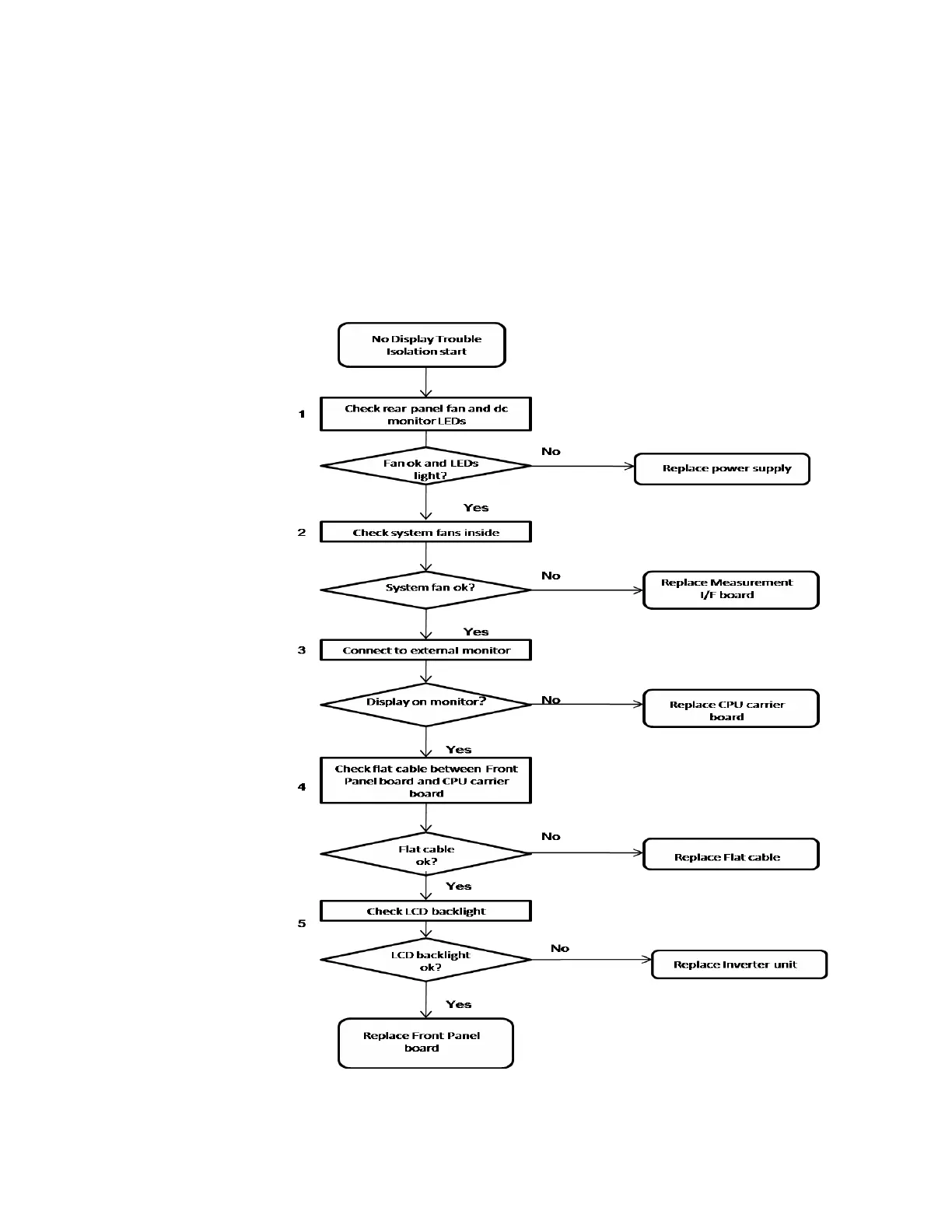

Figure 2-3 No display trouble isolation procedure
