40 Keysight E5061B Network Analyzers
Troubleshooting
Function Specific Troubleshooting
2-
To Check the Device Driver
Make sure first whether the E5061B device drivers are installed properly or not
by the following procedure, if a function of specific device in the E5061B
doesn't work.
Step 1. Exit from the E5061B measurement view in accordance with the procedure
described in “How to exit from the E5061B Measurement View” on page 20.
Then, Windows desktop screen is displayed.
Step 2. Click "My Computer" with the right button and select "Properties" as shown
in Figure 2-17. Then, the System Properties(Figure 2-18) will appear.

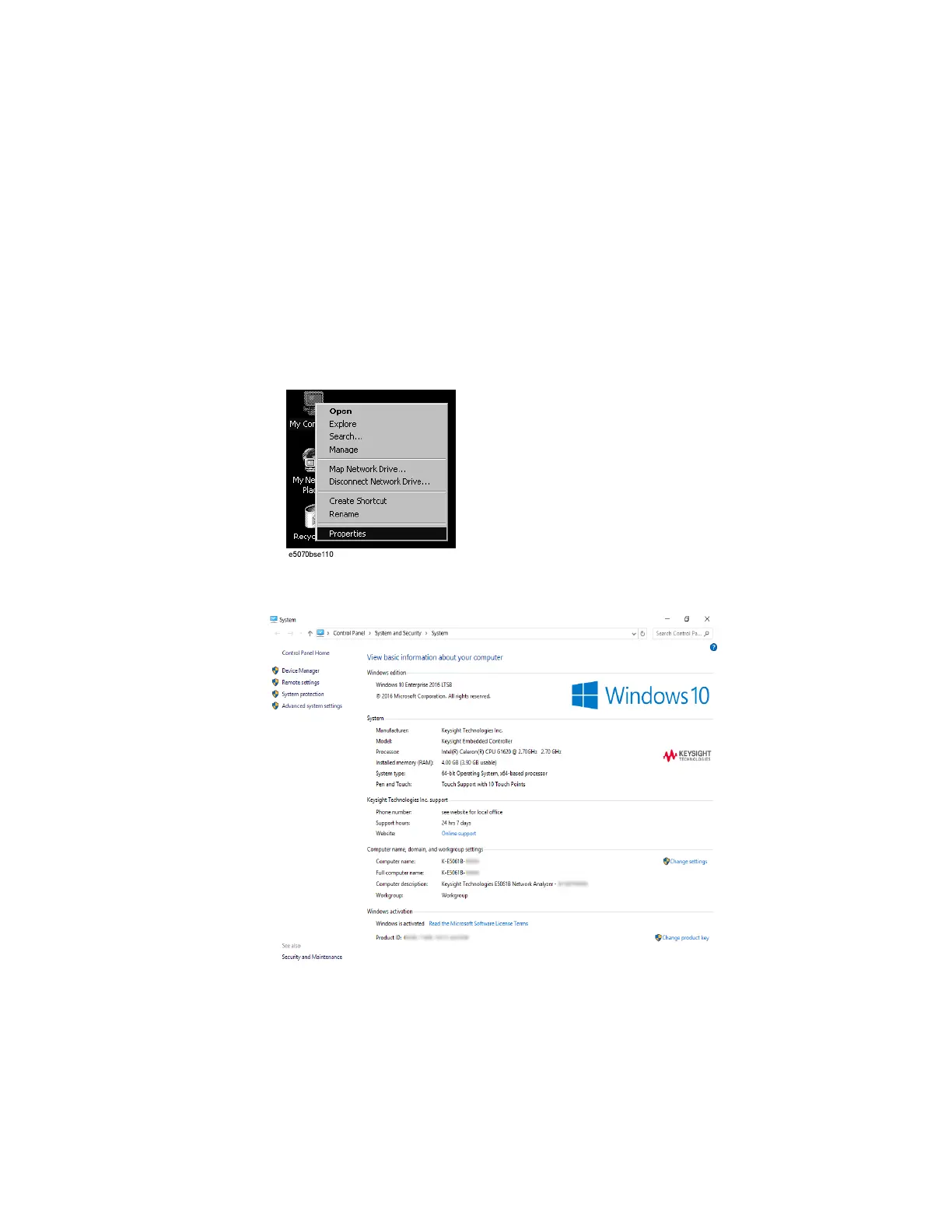

Figure 2-17 Opening System Property Window
Figure 2-18 System Properties Window (General)
Step 3. Click Hardware tab and Device Manager button. The operating system
detects all the necessary device drivers and displays the device names as
shown in Figure 2-19.
To Next Page
