Keysight E5061B Network
Analyzers
87
Replacement P
r
ocedur
e
Fan Asse
mbly Repl
acement

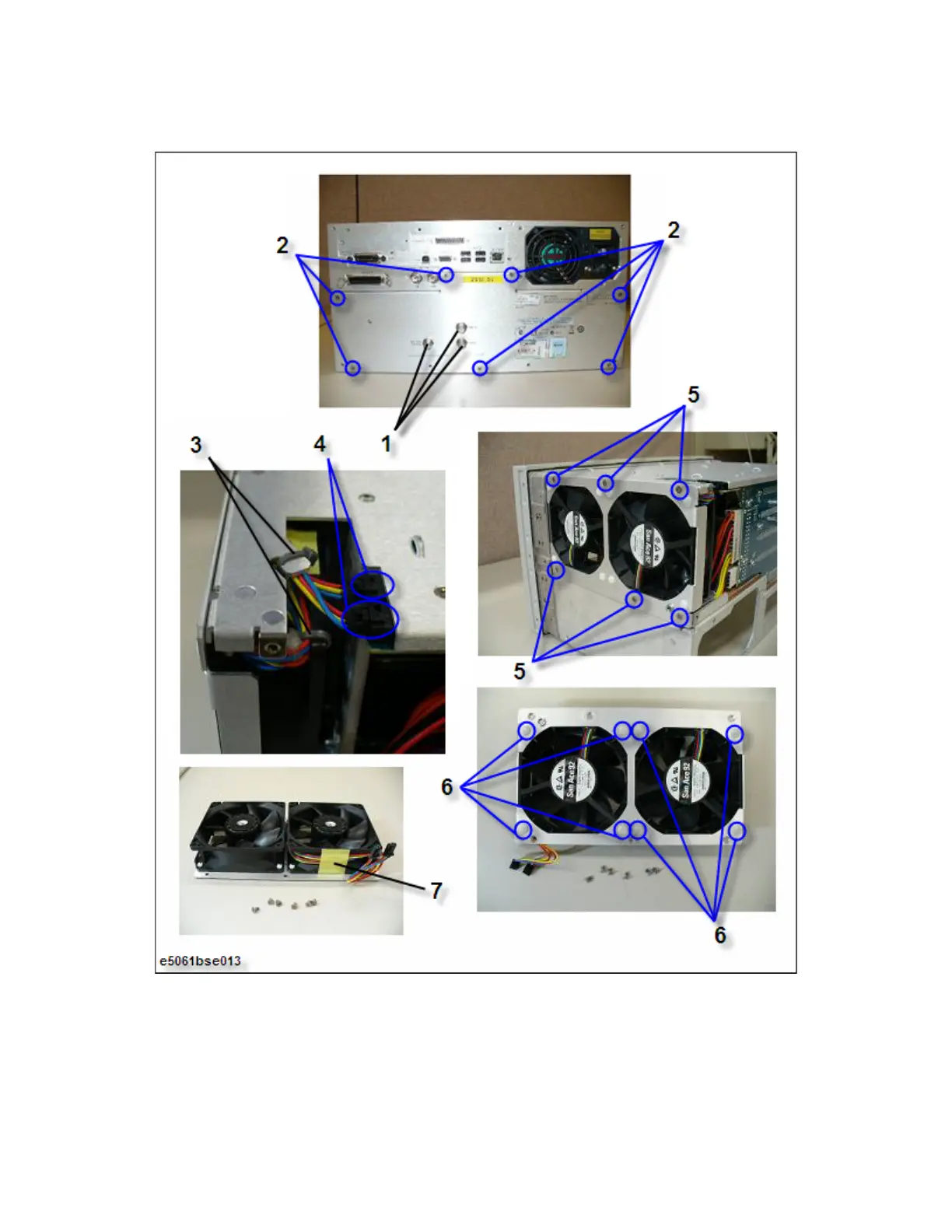

Figur
e 4-17
Fan Assembly Removal
86
88
Table of Contents
Default Chapter
3
Caution
3
Safety Summary
3
Safety Symbols
5
Certification
5
Exclusive Remedies
5
Assistance
5
Table of Contents
7
1 General Information
13
Precautions
13
Software Installed
13
Organization of Service Guide
14
Instrument Covered by this Manual
15
Required Equipment
16
2 Troubleshooting
19
Introduction
19
How to Exit from the E5061B Measurement View
20
To Troubleshoot the Instrument
21
Primary Trouble Isolation
21
No Display Troubleshooting
23
Booting Process Troubleshooting
27
Troubleshooting Using Diagnostic Test
32
Power on Self Test
32
PLL Unlock
32
Contents of the Diagnostic Test
32
Test Equipment Required for Diagnostic Test
33
To Execute the Diagnostic Test
33
Program Overall
35
Diagnostic Test Failure Troubleshooting
36
Function Specific Troubleshooting
39
To Check the Device Driver
40
To Check the Front Panel
42
To Check the Touch Panel
42
To Check the LCD
43
To Check the External Keyboard
43
To Check the Mouse
43
To Check the Video Output
44
To Check the External Trigger Input
44
To Check the GPIB
44
To Check the USB
45
Performance Test Failure Troubleshooting
46
Recommended Adjustment for Performance Test Failure
46
Performance Test Failure Troubleshooting
48
3 Replaceable Parts
51
Ordering Information
51
Direct Mail Order System
51
Exchange Assemblies
52
Replaceable Parts List
52
4 Replacement Procedure
53
Replacing an Assembly
53
Required Tools
54
Outer Cover Replacement
55
Tools Required
55
Removal Procedure
55
Replacement Procedure
55
Front Panel Replacement
56
Tools Required
56
Removal Procedure
56
Replacement Procedure
56
Hard Disk Assembly Replacement (Option 019)
58
Tools Required
58
Removal Procedure
58
Replacement Procedure
58
Hard Disk Assembly Replacement (Option 020)
60
Tools Required
60
Removal Procedure
60
Replacement Procedure
60
Power Supply Assembly Replacement
62
Tools Required
62
Removal Procedure
62
Replacement Procedure
62
A50 CPU Module Replacement
64
Tools Required
64
Removal Procedure
64
Replacement Procedure
64
A60 CPU Module Replacement
66
Tools Required
66
Removal Procedure
66
Replacement Procedure
66
24 Bit I/O Assembly Replacement
68
Tools Required
68
Removal Procedure
68
Replacement Procedure
68
DSP Assembly Replacement
70
Tools Required
70
Removal Procedure
70
Replacement Procedure
70
A9 LF Source Bias Module Replacement
72
Tools Required
72
Removal Procedure
72
Replacement Procedure
72
A2 Receiver Module Replacement
74
Tools Required
74
Removal Procedure
74
Replacement Procedure
74
A3/A4 Receiver Module Replacement
76
Tools Required
76
Removal Procedure
76
Replacement Procedure
76
A1 Source Module Replacement
78
Tools Required
78
Removal Procedure
78
Replacement Procedure
78
A11 Source Module Replacement
80
Tools Required
80
Removal Procedure
80
Replacement Procedure
80
A10 Analog Mother Board Replacement
81
Tools Required
81
Removal Procedure
81
Replacement Procedure
82
Ref Oven (Opt. 1E5) Replacement
84
Tools Required
84
Removal Procedure
84
Replacement Procedure
84
Fan Assembly Replacement
86
Tools Required
86
Removal Procedure
86
Replacement Procedure
86
Angle (Fan Assembly) Replacement
88
Tools Required
88
Removal Procedure
88
Replacement Procedure
88
Touch Screen Control Board Replacement
89
Tools Required
89
Removal Procedure
89
Replacement Procedure
89
Torque Screwdriver, T15 and T20
89
Flat Edge Screwdriver
89
Refer to Figure 4-15 for this Procedure
89
Step 1. Remove the Outer Cover as Described in "Outer Cover Replacement" on Page
89
Step 2. Remove the Front Panel as Described in "Front Panel Replacement" on Page
89
Inverter Board Replacement
90
Tools Required
90
Removal Procedure
90
Replacement Procedure
90
Power Switch Assembly Replacement
92
Tools Required
92
Removal Procedure
92
Replacement Procedure
92
Replacement" on Page
92
A52 Front Panel Interface Board / Key Pad Replacement
94
Tools Required
94
Removal Procedure
94
Replacement Procedure
94
LCD Assembly Replacement
96
Tools Required
96
Removal Procedure
96
Replacement Procedure
96
Front Frame Replacement
98
Tools Required
98
Removal Procedure
98
Replacement Procedure
98
Handle Assembly Replacement
100
Tools Required
100
Removal Procedure
100
Replacement Procedure
100
5 Post-Repair Procedures
104
A.manual Changes
111
Manual Changes
111
System Recovery
113
C.firmware Update
115
Firmware Update
115
Required Equipment
115
How to Update the E5061B Firmware
115
D.power Requirement
117
Preparation for Power Supply
117
Power Requirements
117
Power Cable
117
Turning the Power on and off
118
Turning the Power on
118
Turning the Power off
118
E.messages
119
Error Messages
120
Warning Message
120
