4 Local Operation
30 Keysight J7211A/B/C Operating and Service Manual

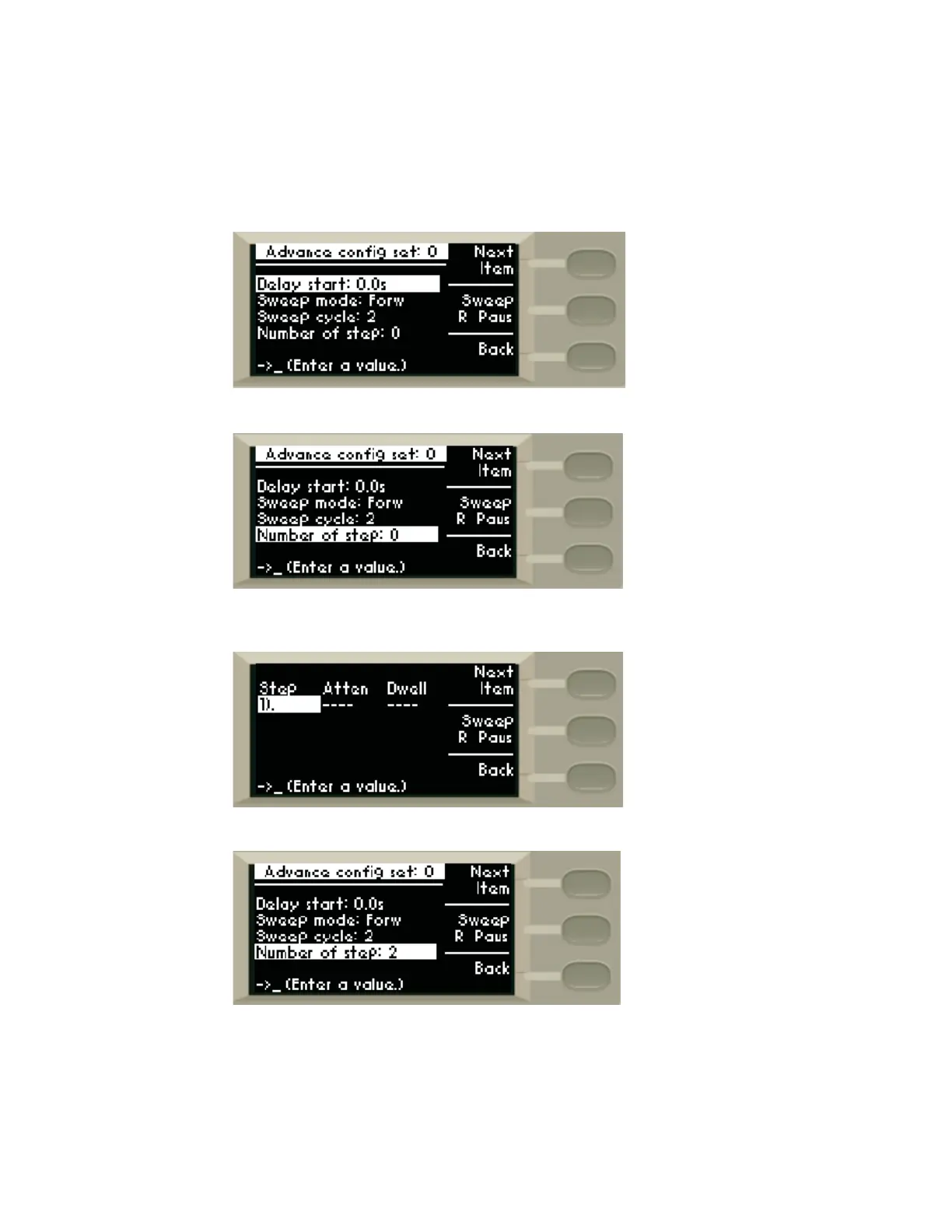

To configure for ad vance configuration
Configuring delay start; start/stop attenuation and step size; dwell’s time and sweeping option:
1 Maximum and minimum limits for Delay start, sweep mode and sweep cycle are set similar to
quick configuration. Tune rotary knob to your desire values or enter value using keypad.
2 Press Next Item softkey to scroll from top to bottom of the setting options.
3 Initially Number of step is set at 0. Press Next Item softkey once an observe that no step is set
(Atten and Dwell is blank).
4 E.g. Number of step is set at 2 by tuning the rotary knob or entering value via keypad.
5 Observe that 2 steps appear and set your attenuation (ATTEN) and dwell time (Dwell).
6 E.g. Step 1 is set at 100dB attenuation and dwell time of 2s while Step 2 shows 20dB
attenuation and dwell time of 0s.
