20 Keysight M9037A PXIe Embedded Controller User Guide
Introduction M9037A Functional Description

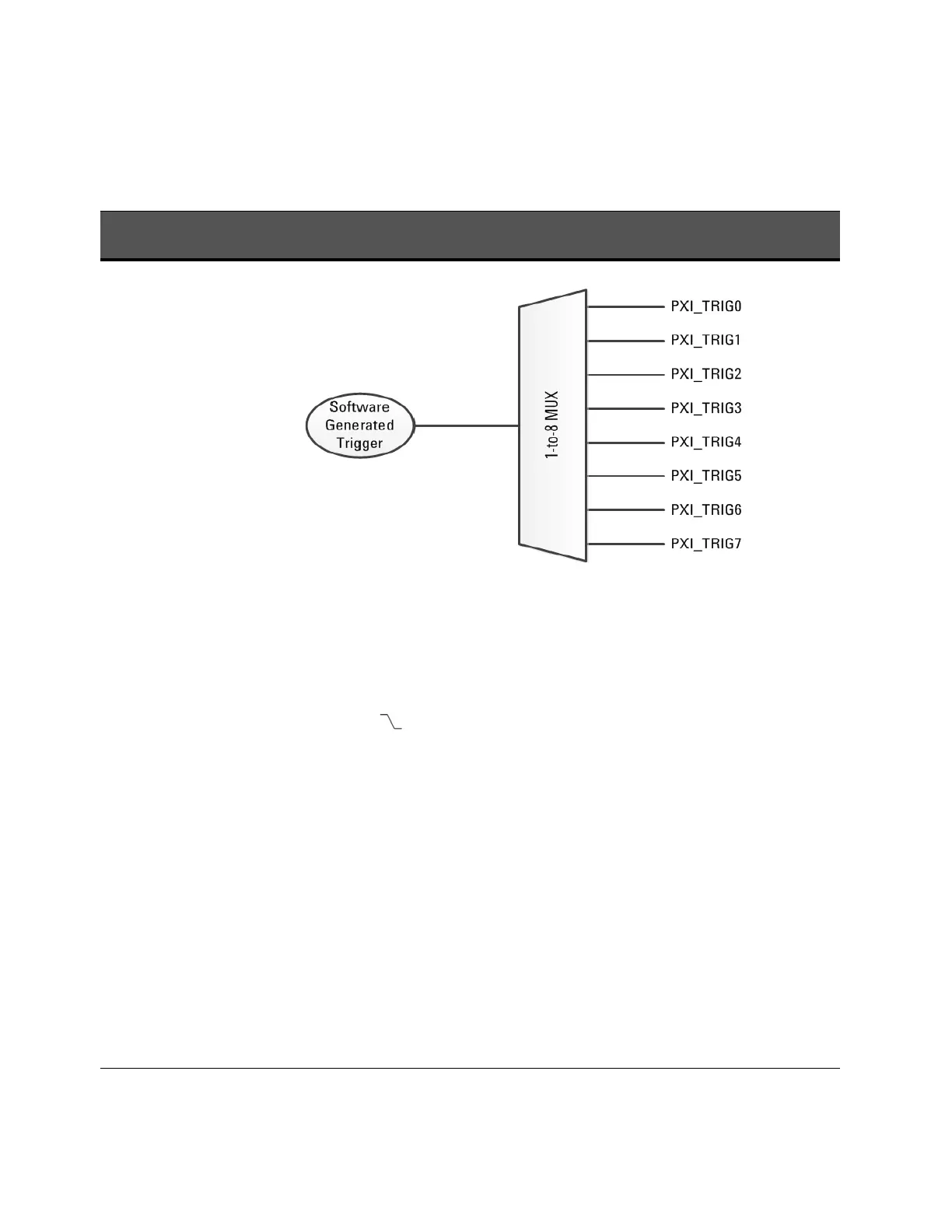

Software generated trigger to selected backplane trigger bus
Trigger Source:
Software Generated
Trigger Destination:
One of the eight PXI backplane trigger lines
IVI Driver Syntax (C#):
TriggerRouting.SetRoute (
AgPxiPcTriggerRouteEnum.AgPxiPcTriggerRouteSoftwareToTriggerBus,
AgPxiPcPxiTrigEnum.AgPxiPcPxiTrig[0:7]);
To set the software trigger level use the property:
TriggerRouting.SoftwareRouteTriggerState
For example, to create a negative-going edge ( ):
TriggerRouting.SoftwareRouteTriggerState = true;
TriggerRouting.SetRoute (
AgPxiPcTriggerRouteEnum.AgPxiPcTriggerRouteSoftwareToTriggerBus,
AgPxiPcPxiTrigEnum.AgPxiPcPxiTrig[0:7]);
TriggerRouting.SoftwareRouteTriggerState = false;
Notes:
• A “software trigger” does not generate a trigger pulse. The SoftwareRouteTriggerState property in the IVI driver
defines a voltage level: True = 3.3V (asserted) and False = 0.0V (not asserted). To generate a pulse, you must toggle
the state of the SoftwareRouteTriggerState property; that is, set the property to one state, wait for the desired length
of pulse, and then set the property to the opposite state.
• You must select only one of the eight PXI backplane trigger bus lines (PXI_TRIG[0:7]) as a destination.
• TriggerRouting.Enabled returns “true” if and only if the trigger routing subsystem is enabled.
• Use TriggerRouting.RouteConfiguration to determine the current routing configuration.
• TriggerRouting.ResetRoute opens all trigger routing paths and disables the trigger routing subsystem. ResetRoute does
not alter the state of the SoftwareRouteTriggerState property. However, the
Reset method of the IVI driver resets the
state to the power-on default of True (3.3V).
