M9037A PXIe Embedded Controller
User Guide
27
2 Using the Controller
Your M9037A comes with the Windows Operating System pre-installed along
with Keysight's IO Libraries Suite. This chapter provides general system
configuration and preventive maintenance procedures that you are responsible
for. In general, the M9037A operates as any other PC.
Controller Startup
After inserting the M9037A controller into slot 1 of a PXIe chassis, press the
chassis’ power on button. After a few seconds, the controller will beep indicating
it passed its Power On Self Test (POST). To boot into Windows from the splash
screen, no action is needed. However, you have 2 other options. You can press
the <DELETE> key to enter the BIOS setup or press <F7> for the boot device menu.

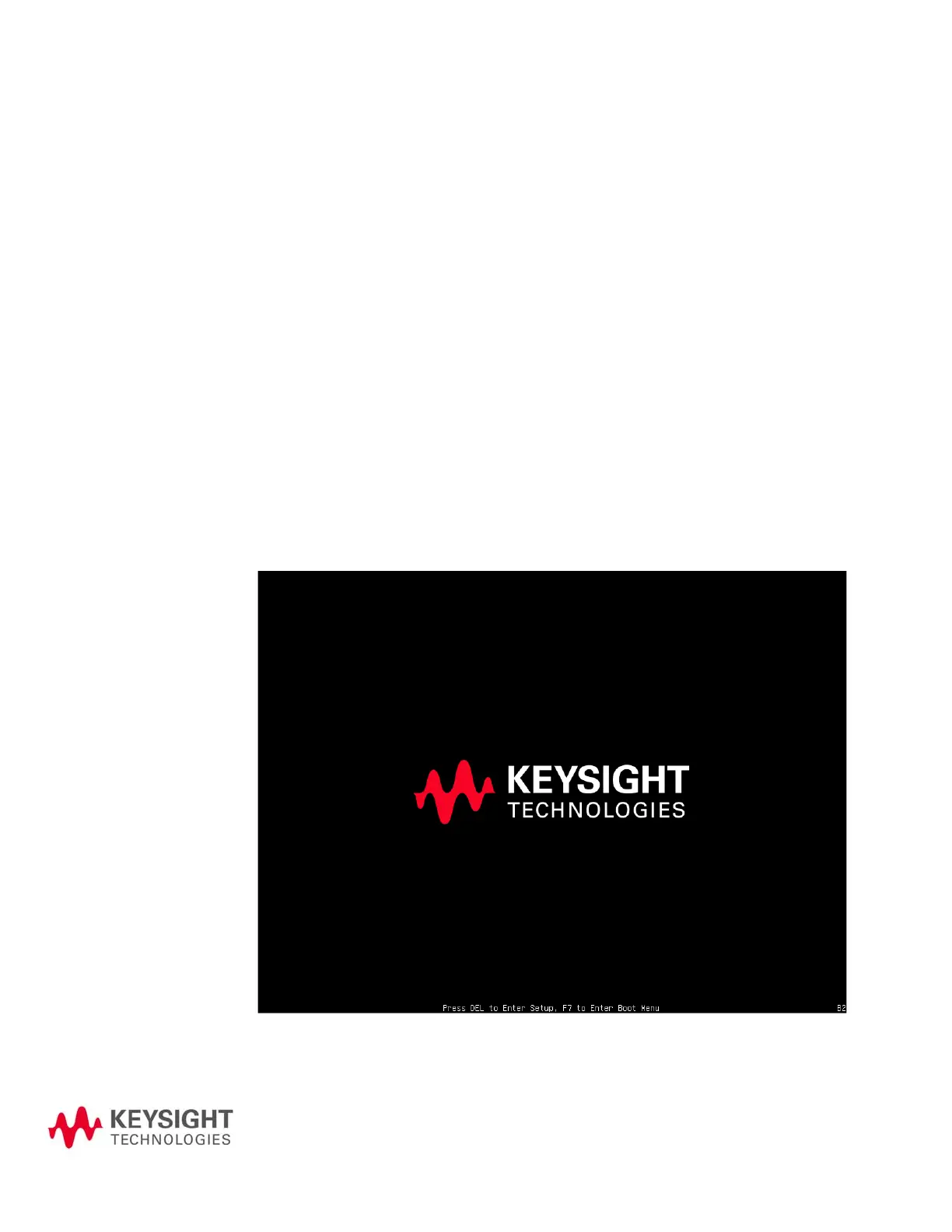

Figure 3 M9037A boot splash screen
