Keysight M9037A PXIe Embedded Controller User Guide 19
M9037A Functional Description Introduction

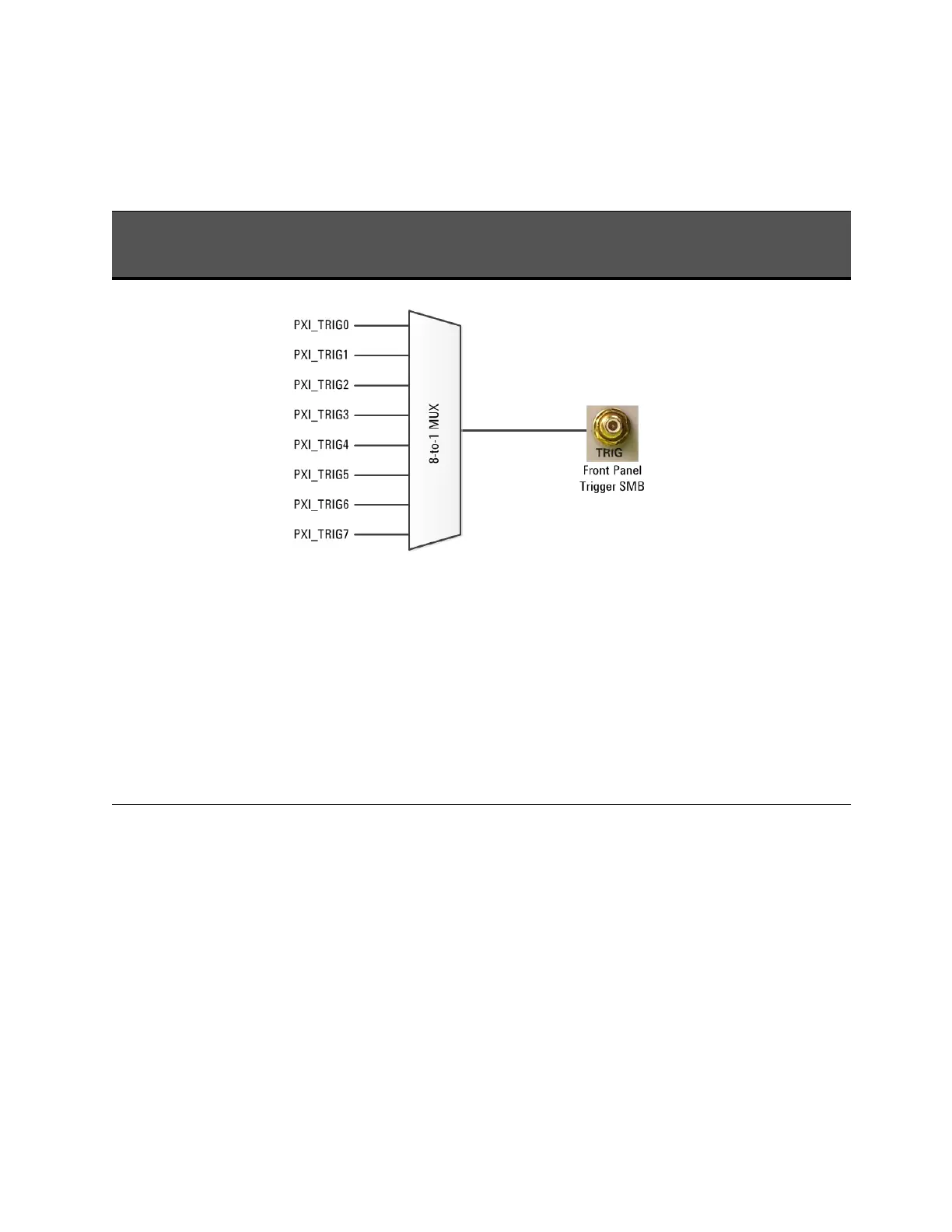

Selected backplane trigger bus to front panel SMB trigger connector
Trigger Source:
One of the eight PXI backplane trigger lines
Trigger Destination:
Front Panel SMB Trigger Connector
(External)
IVI Driver Syntax (C#):
TriggerRouting.SetRoute (
AgPxiPcTriggerRouteEnum.AgPxiPcTriggerRouteTriggerBusToExternal,
AgPxiPcPxiTrigEnum.AgPxiPcPxiTrig[0:7])
Notes:
• The front panel TRIG port connects directly to Trigger Bus Segment 1 on the PXIe chassis Backplane.
• You must select only one of the eight PXI backplane trigger bus lines (PXI_TRIG[0:7]).
• TriggerRouting.Enabled returns “true” if and only if the trigger routing subsystem is enabled.
• Use TriggerRouting.RouteConfiguration to determine the current routing configuration.
• TriggerRouting.ResetRoute opens all trigger routing paths and disables the trigger routing subsystem.
