224 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
RF Assembly
A3 RF Assembly Troubleshooting
4. Verify that the power level is +4 dBm or greater, accounting for any cable
loss, and that the frequency is 10 MHz +/-1 Hz, as shown in Figure 10-13.
5. If the power level or frequency does not meet the requirements run the
“Reference Related Adjustments” listed earlier in this chapter. If they do
not resolve the problem, replace the A3 RF assembly.

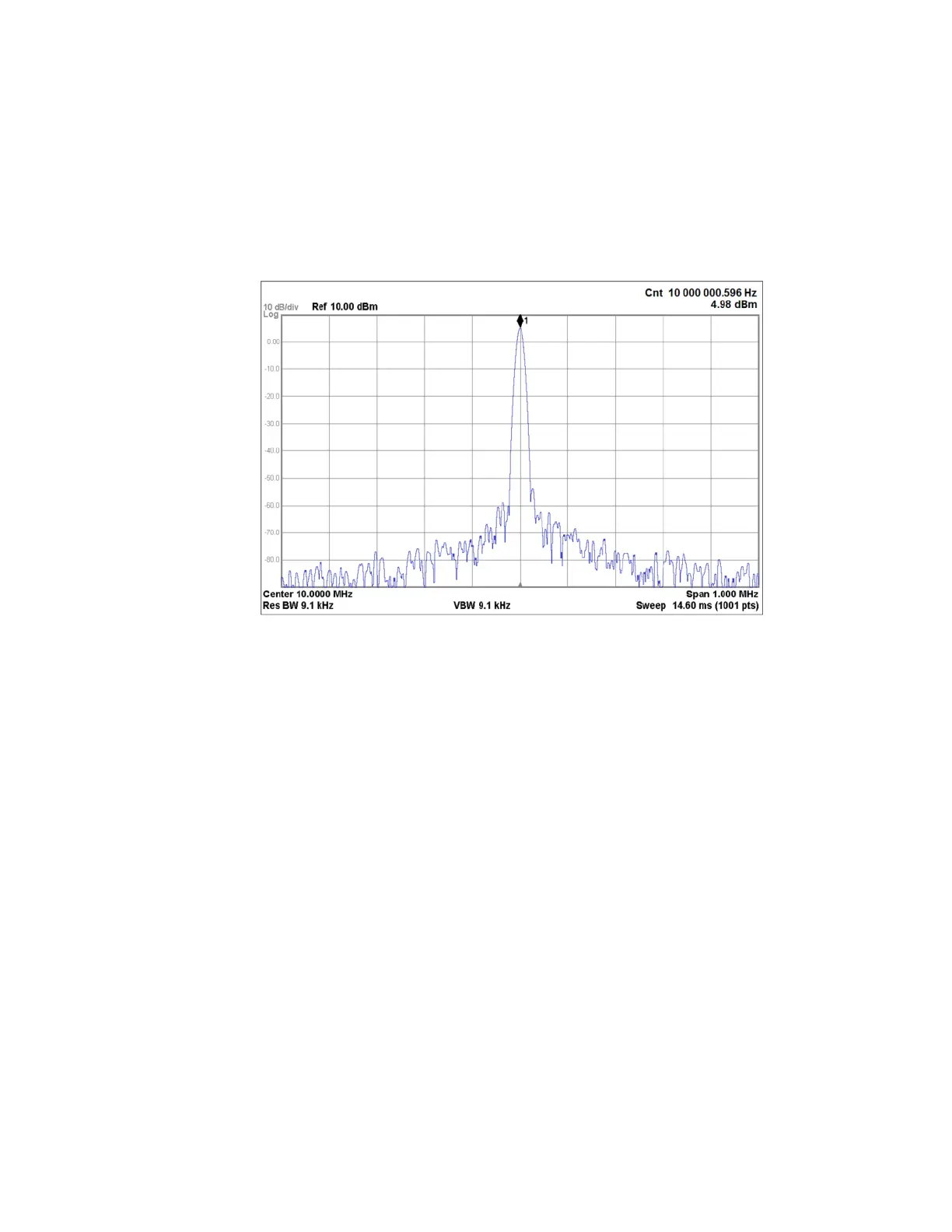

Figure 10-13 10 MHz OUT
