Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide 121
Service and Utility Menus
Utility Service Menu
As shown in Figure 5-17, once one of these calibrations has been run the date
of the calibration will be displayed on the screen for this menu. If there is no
date displayed in the menu the Factory Calibration selection will not be
available and the Enhanced Factory Calibration will need to be run.

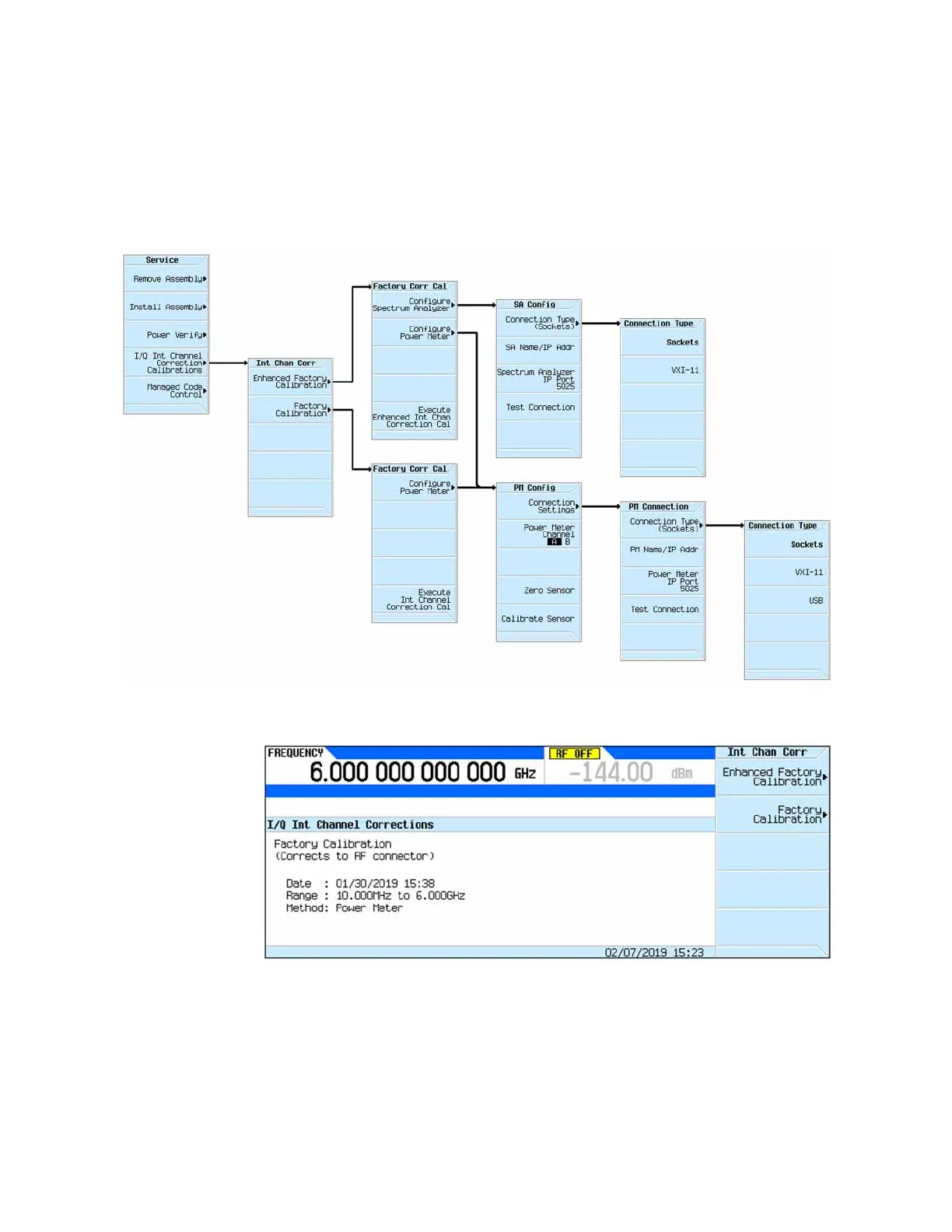

Figure 5-16 I/Q Internal Channel Correction Calibrations
Figure 5-17 I/Q Internal Channel Correction Calibration Menu and Display
Enhanced Factory Calibration
This routine will run the following adjustments:
—IQ Calibration
—IQ Internal Channel Correction Coarse Calibration
