Keysight Agile Signal Generator Service Guide 119
Assembly Replacement
A17 Agile Mod/Filter
Tools Required
— T-10 driver
— 5/16” open-ended wrench
Removal Procedure
1. Refer to Figure 3-21. Remove cables W12, W13, and W14. For Option
540/54E instruments also remove cables W23 and W25.

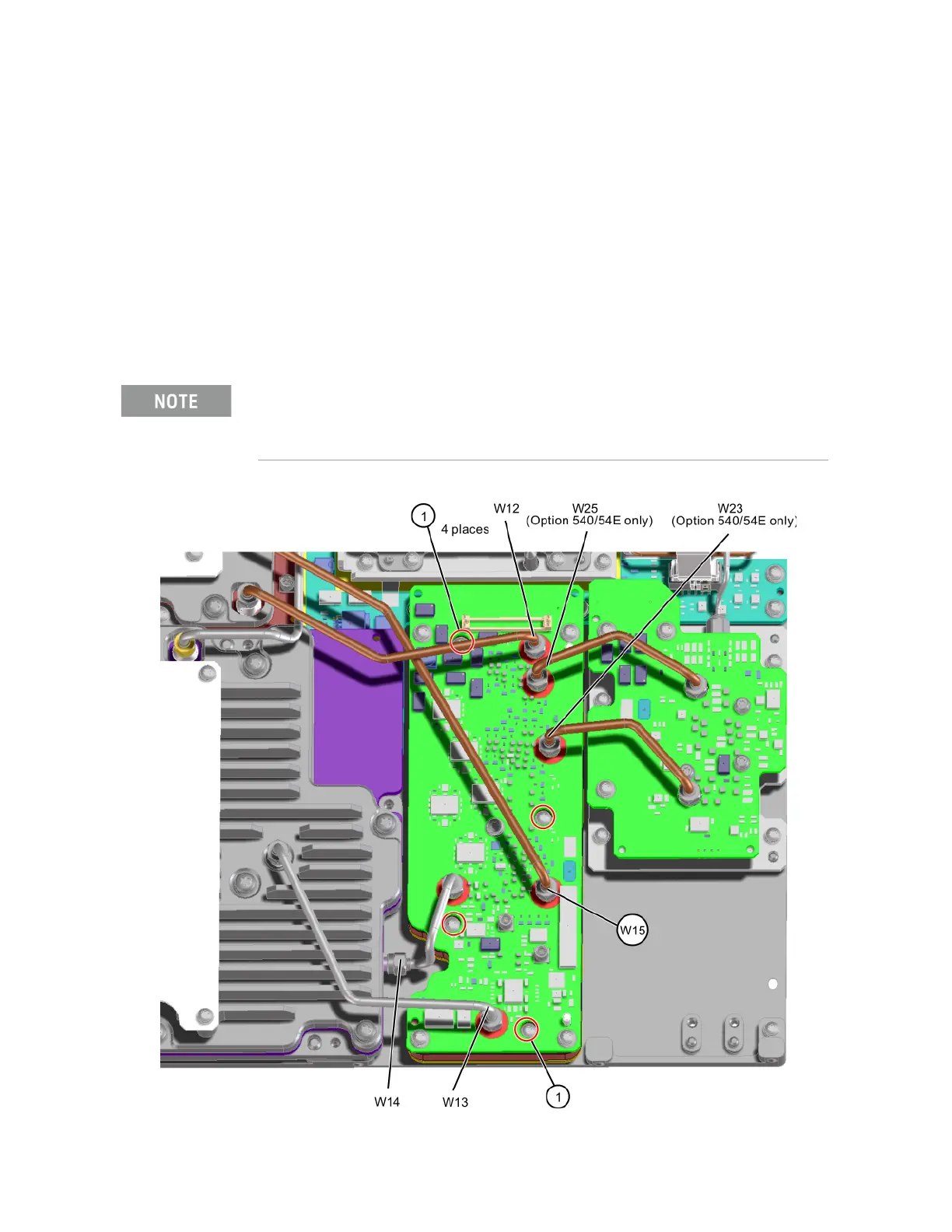

Figure 3-21 A17 Agile Mod/Filter Cables and Screws
Option 540/54E instrument is shown. Option 520/52E instruments will have a different cable at
the W25 location that will need to be removed.
