Keysight Agile Signal Generator Service Guide 123
Assembly Replacement
A19 40 GHz Doubler - Option 540/54E Only
Tools Required
— T-10 driver
— 5/16” open-ended wrench
Removal Procedure
1. Refer to Figure 3-23. Remove cables W23 and W25. Also disconnect the
cable at the location indicated.

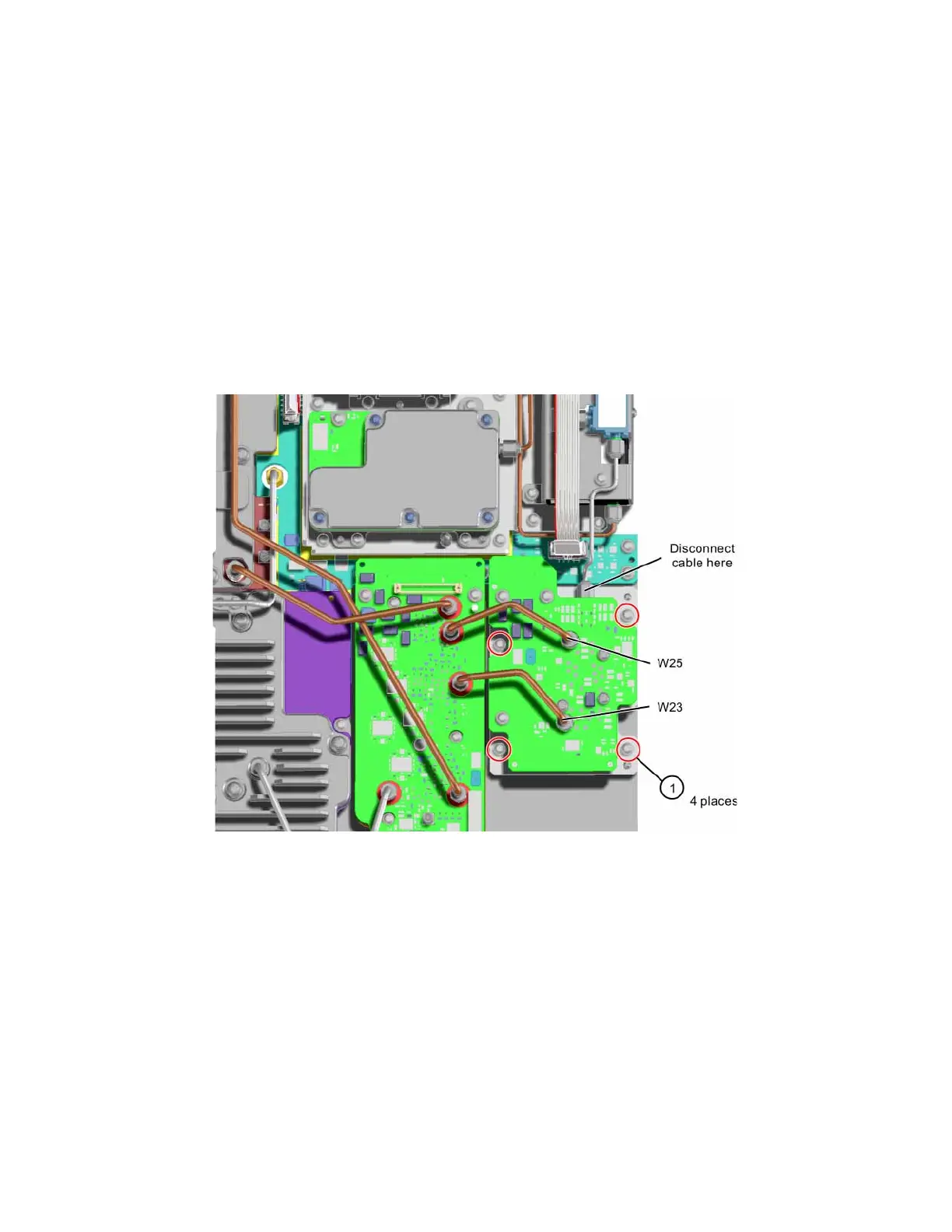

Figure 3-23 A19 40 GHz Doubler Cables and Screws
2. Remove the four screws (1) (0515-0372) that attach the A19 40 GHz
Doubler to the deck. The 40 GHz Doubler can now be lifted from the deck.
