Keysight Agile Signal Generator Service Guide 135
Assembly Replacement
A3 Fan Module
Tools Required
— T-10 driver
Removal Procedure
1. Disconnect the power cord.
2. Remove the outer-cover from the signal generator. Refer to “Outer Cover”
on page 99.
3. Place the signal generator upside down on a flat surface.
4. Refer to Figure 3-32. Using the T-10 driver remove the eleven screws (1)
(0515-1946) that attach the outer wall (2) to the chassis.

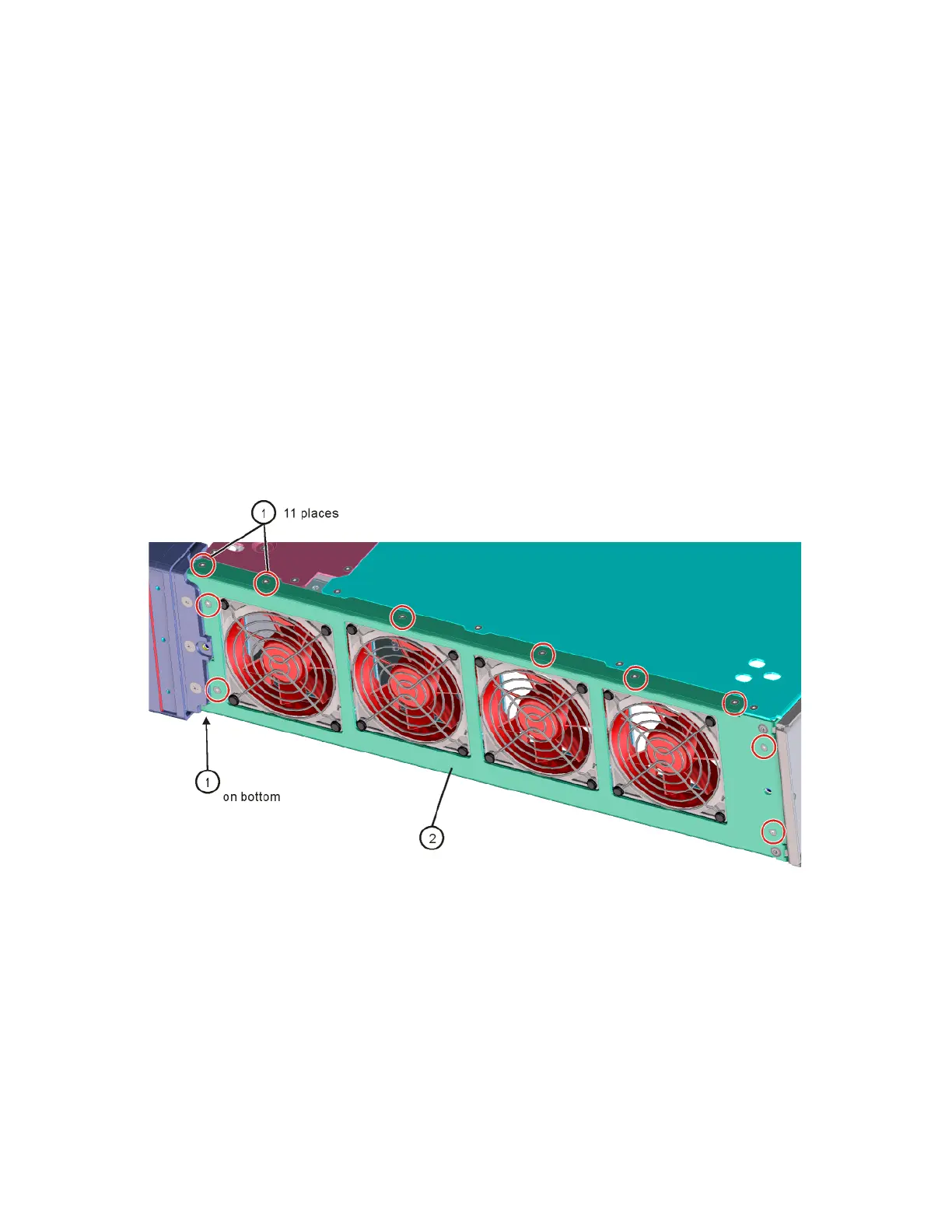

Figure 3-32 Outer Wall Removal
