Keysight Agile Signal Generator Service Guide 121
Assembly Replacement
A18 Lowband Output Module
Tools Required
— T-10 driver
— 5/16 inch open-ended wrench
— socket wrench and 5/16 inch slotted deep socket
Removal Procedure
1. Refer to Figure 3-22. Remove cables W12 and W15. Using the 5/16 inch
slotted socket remove cable W10.

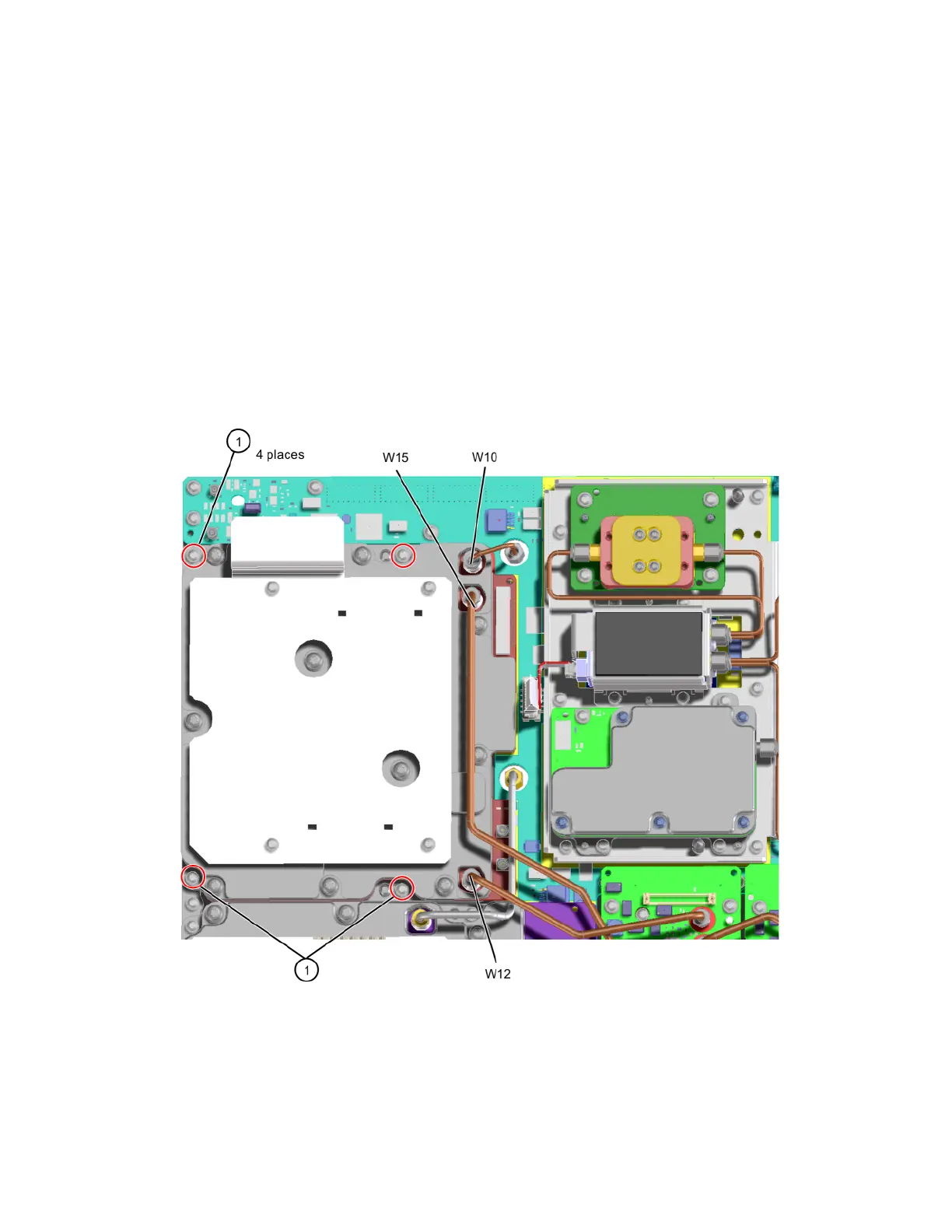

Figure 3-22 A18 Lowband Output Module Cables and Screws
2. Remove the four screws (1) (0515-0664) that attach the A18 Lowband
Output Module to the deck. The Lowband Output Module can now be
lifted from the deck.
