Keysight Agile Signal Generator Service Guide 107
Assembly Replacement
10.Before removing the cables from the front frame, it is necessary to identify
them with a label of some kind in order to reinstall them in the correct
location.
11.Refer to Figure 3-11. Using the 1/2-inch slotted deep socket remove the
nut and washer from each connector from inside the front panel.

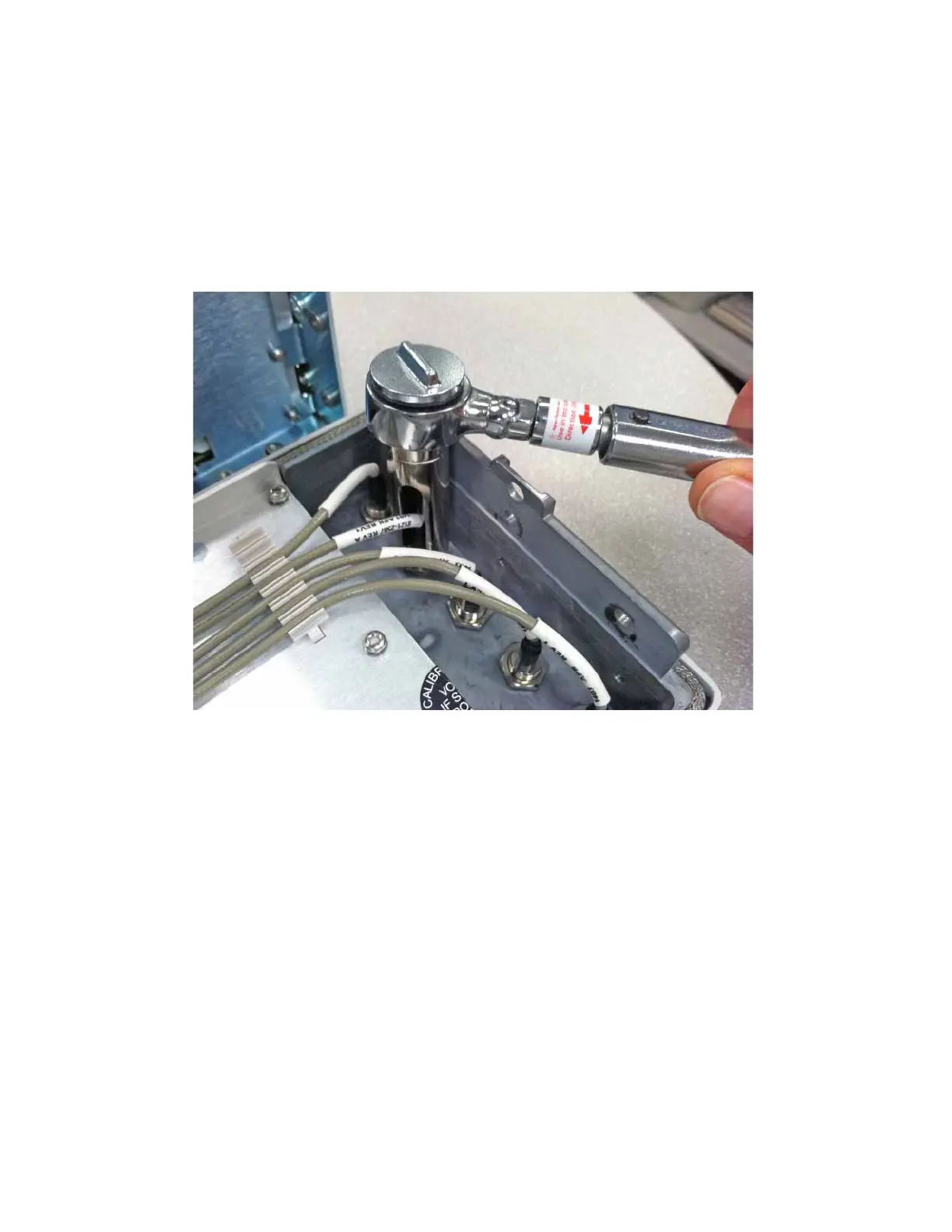

Figure 3-11 Remove Cables from Front Frame
Replacement Procedure
1. Reverse the order of the removal procedure.
2. Carefully reinstall the front panel cables into their correct location. Secure
each with the washer and nut. Torque to 21 in–lbs.
3. Recommended torque for all T-10 screws is 9 in–lbs. Recommended
torque for all T-20 screws is 21 in–lbs.
4. Perform the post-repair performance tests that pertain to this
replacement procedure, see Chapter 4, “Post-Repair Procedures and
Operational Performance Verification.”.
