106 Keysight Agile Signal Generator Service Guide
Assembly Replacement
8. Refer to Figure 3-9. Separate the front frame slightly from the chassis.
Remove the cables from the cable clip shown if necessary to provide slack
for the grey cables.

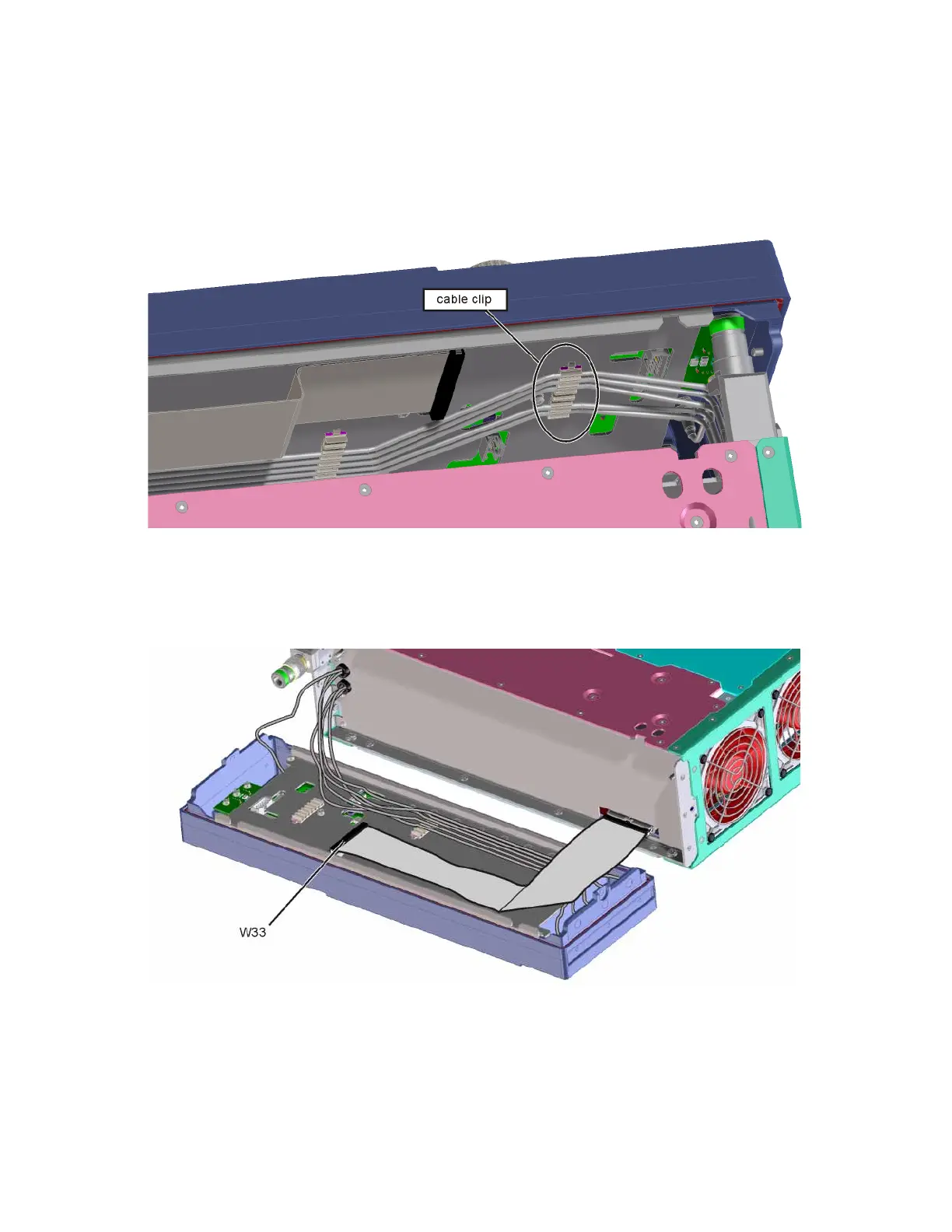

Figure 3-9 Remove Cables from Clip
9. Refer to Figure 3-10. Fold the front frame down and disconnect W33
ribbon cable from the motherboard connector.
Figure 3-10 Remove Cable W33
