68 Keysight Agile Signal Generator Service Guide
Replaceable Parts
Front Panel

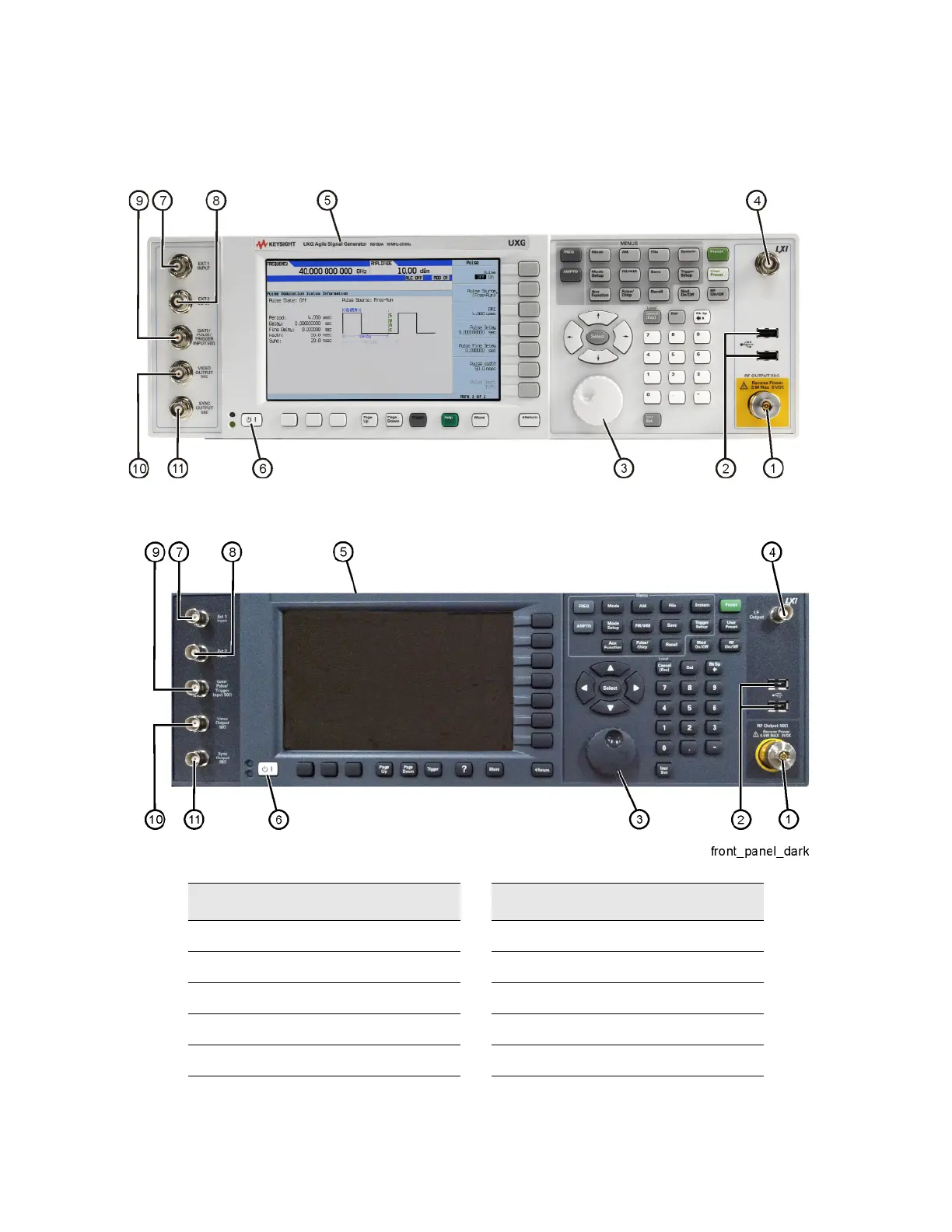

Figure 2-1 Front Panel View - light color
Figure 2-2 Front Panel View - dark color
Item Description Item Description
1 RF Connector 7 W2 - Ext 1 Input
2 USB ports 8 W1 - Ext 2 Input
3 RPG Knob 9 W3 - Gate/Pulse/Trigger Input
4 W6 - LF Output 10 W5 - Video Output
5 Nameplate 11 W4 - Sync Output
6 Power Switch/LEDs
