70 Keysight Agile Signal Generator Service Guide
Replaceable Parts
Assemblies and Cables

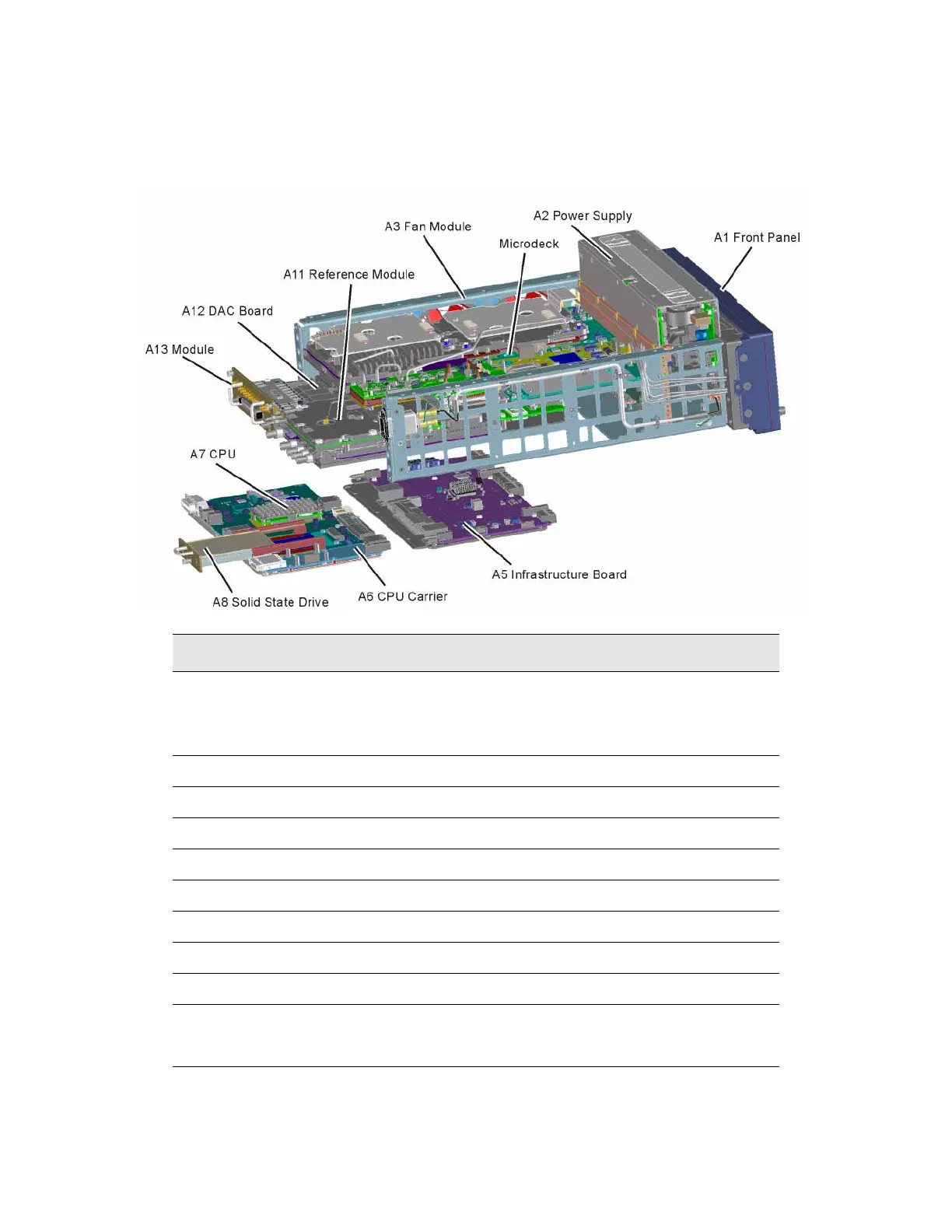

Figure 2-4 Major Assemblies
Description Part Number
A1 Front Panel
light color
dark color
W1312-60151
W1312-60250
A2 Power Supply N5191-60153
A3 Fan Module N5191-60154
A5 Infrastructure Board not field replaceable
A6 CPU Carrier Board N5191-60331
A7 CPU N5191-60332
A8 Solid State Drive N5191-60139
A11 Reference Module N5191-60145
A12 DAC Board N5191-60001
A13 Module, LVDS I/O Interface (Rear Panel I/O Port) N5191-60137
A13 Module, BCD I/O Interface (Rear Panel I/O Port) N5191-60138
Microdeck see Figure2-5
