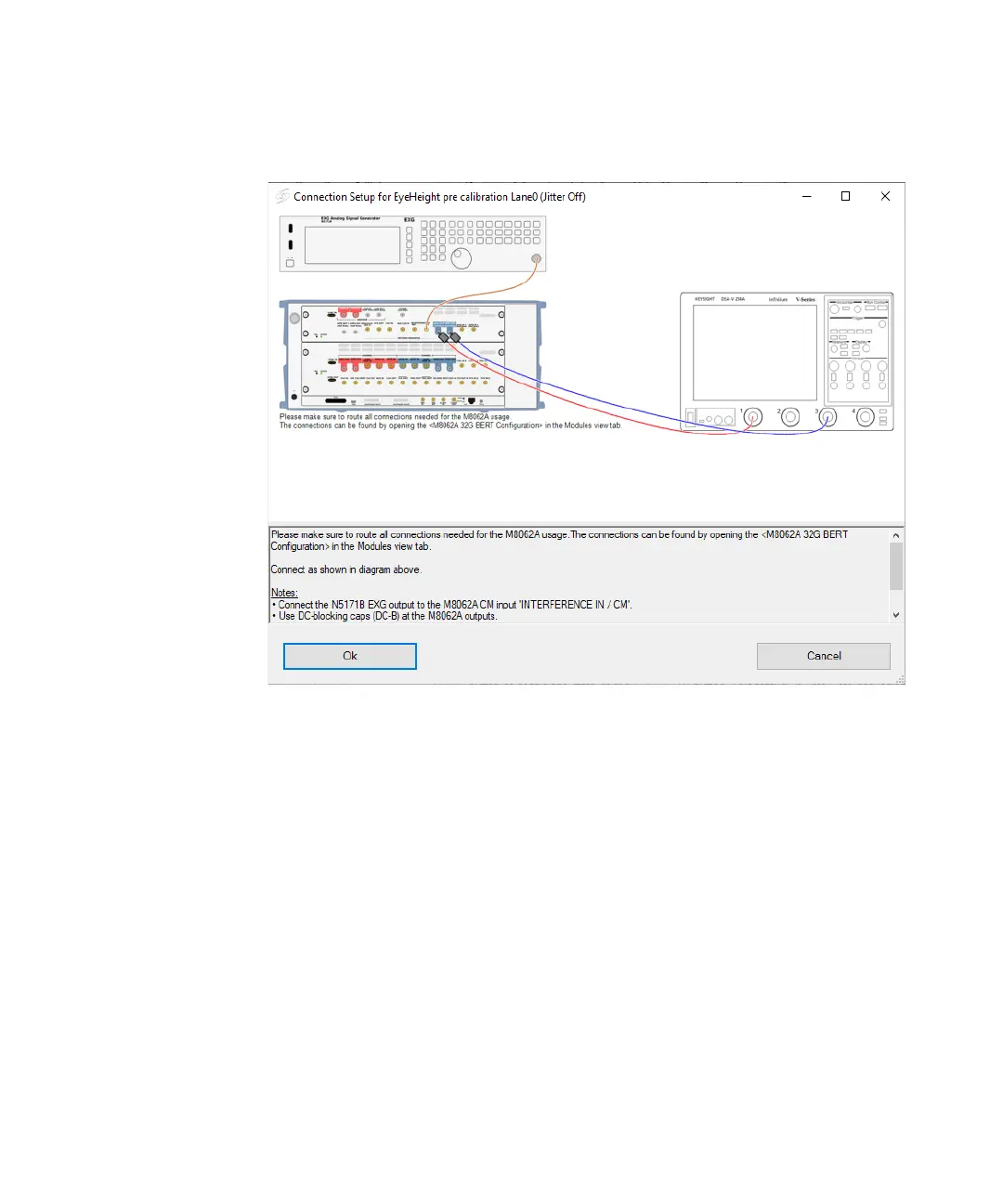

Figure 23 Pop-up Dialog for User Interaction
The connection diagram is also displayed by right-clicking on the desired
test or calibration and selecting “Show Connection”.
When a test is running, use the PAUSE button to pause the test in the next
step of the procedure sequence. Once the test is paused, pressing the
STEP button continues the test until the next step. Otherwise, pressing the
START button continues the test until the end of the procedure. Use the
PAUSE button to toggle the state of the START/STEP button. This feature
is useful for debugging purposes, for example to analyze the signal on the
oscilloscope at each step.
To force the sequencer to stop running the tests, press the ABORT button.
This action will stop the current test in progress and prevent the remaining
tests from running.
