6 Repair Guide
98 Keysight N8262A Service Guide

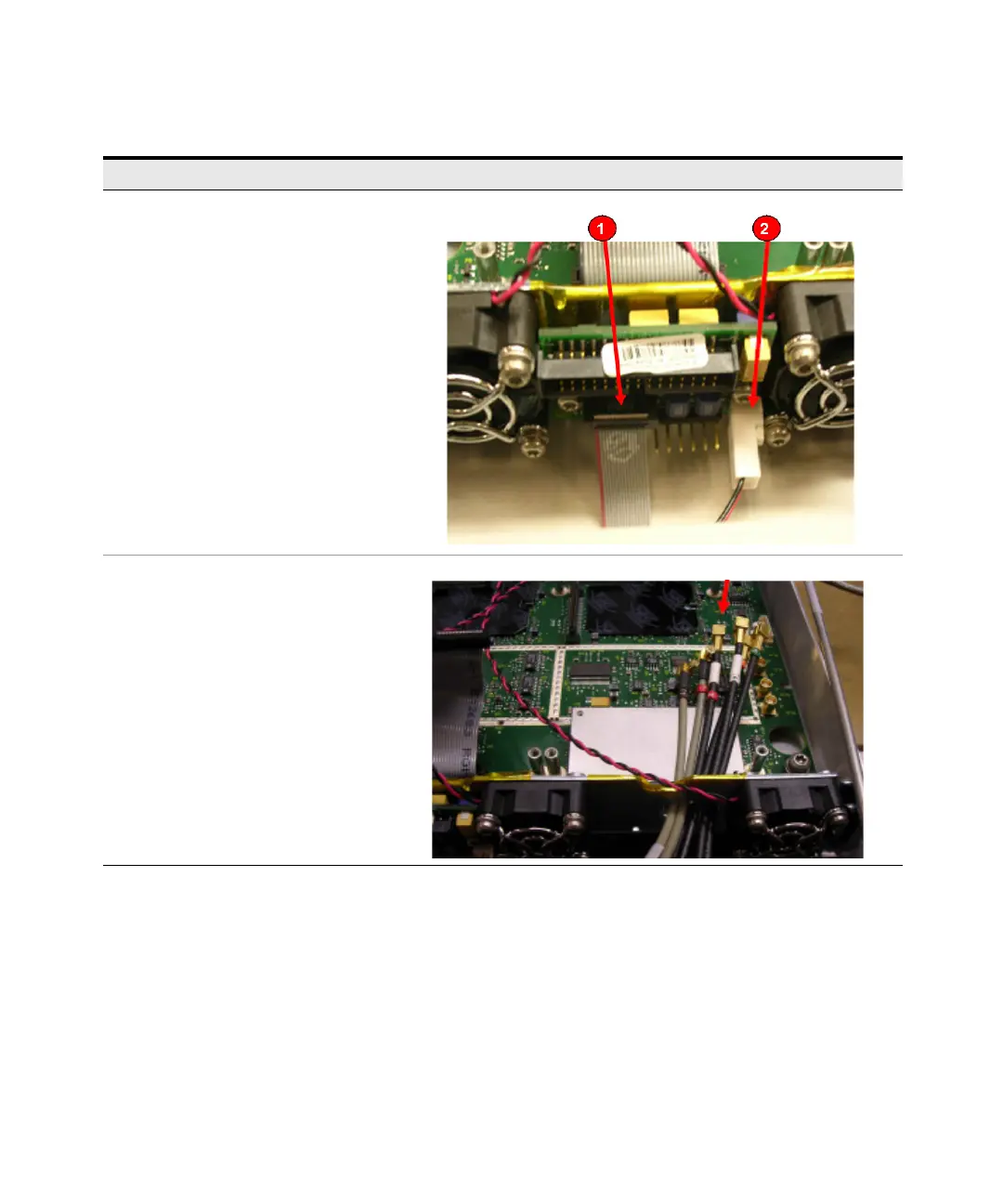

– Step 1: Disconnect the ribbon cable, which
connects the front panel board assembly to
the rocker switch.
– Step 2: Pull and remove the LED wire from
the front panel board assembly.
Take out the six coaxial cables through the hole
in the chassis carefully.
Note:
During this step, you will be able to take out the
front panel assembly, which is inclusive of
channel A and B sensor flex assembly, recorder
output cables, and trigger in/out cables.
