Keysight CX3300 Series User Manual

Keysight CX3300 User’s Guide, Edition 4 43
Using the CX3300
Rear Panel Overview
Rear Panel Overview
This section describes the rear panel of the CX3300.

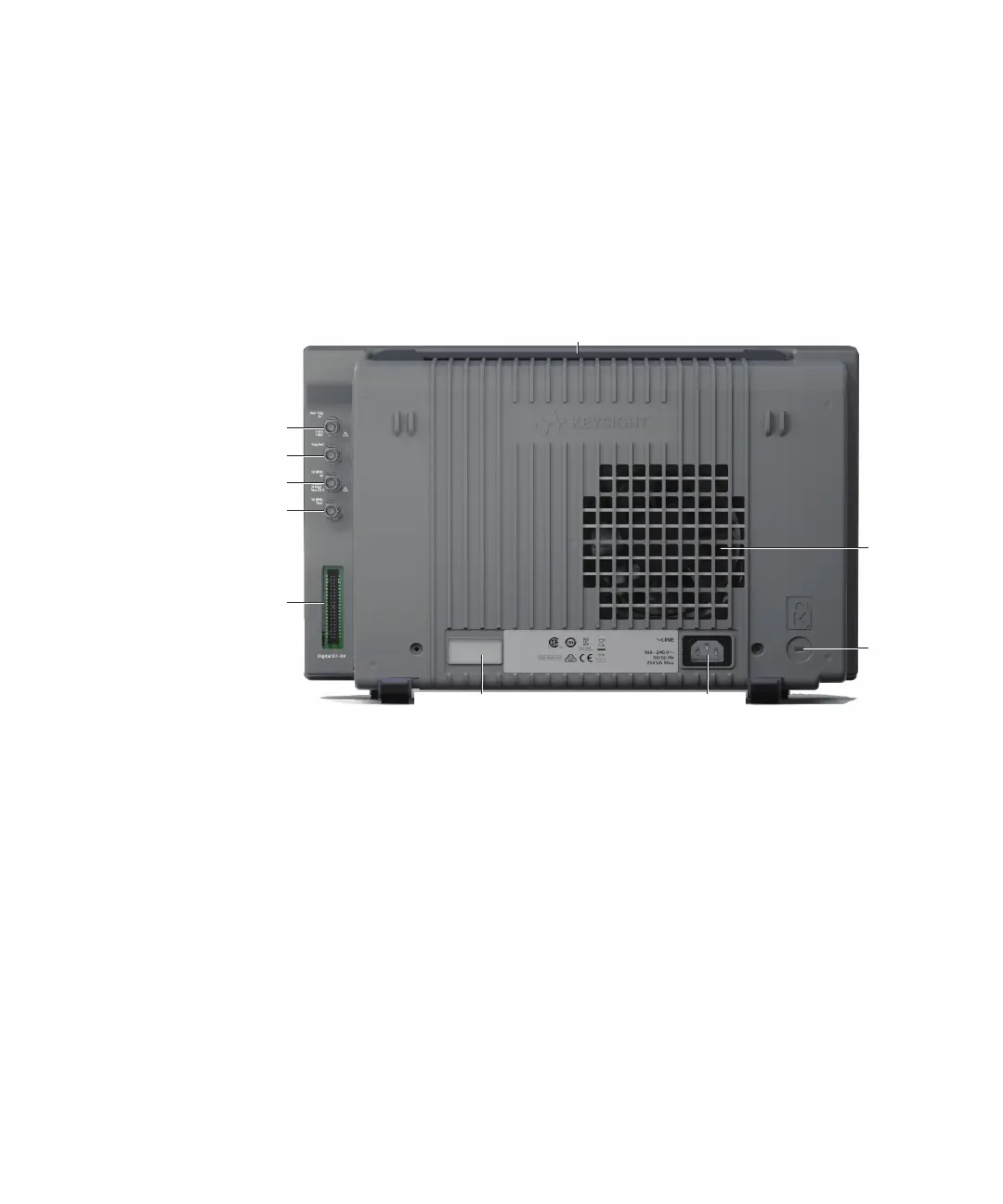

Figure 2-3 Rear Panel
1. Aux Trig In
BNC connector used to receive an external signal for the trigger source of the
CX3300. Trigger input condition can be set by using the Setting dialog box.
The input impedance is 1 M and the maximum swing is 8 V.
2. Trig Out
BNC connector used to send the TTL-
level signal for the trigger source of an
external equipment.
3. 10 MHz In
BNC connector used to receive a reference clock for the horizontal timebase
system of the CX3300. The reference clock must meet the following
specifications.
• Amplitude: 0 dBm 3 dB (typical) +16 dBm (4 Vp-p) maximum
5
1
2
8
3
9
10
4
76
