38 Keysight E4980A/E4980AL Precision LCR Meter
Troubleshooting
Troubleshooting Using Service Function
4-
Executing the self-test from the front panel
The self-test of the E4980A/ E4980AL can be executed from the front panel.
The steps are given below.
Self-test procedure
Step 4. Press [System] - SELF TEST
Step 5. Use the cursor key to highlight the selection item to the right of “TEST No.” (1
in Figure 4-5)
Step 6. Select the number corresponding to the test that you want to perform by
using the INCR+ and DECR- softkeys.
Step 7. Press EXECUTE - TEST START (2 in Figure 4-5) to execute the selected test
item.

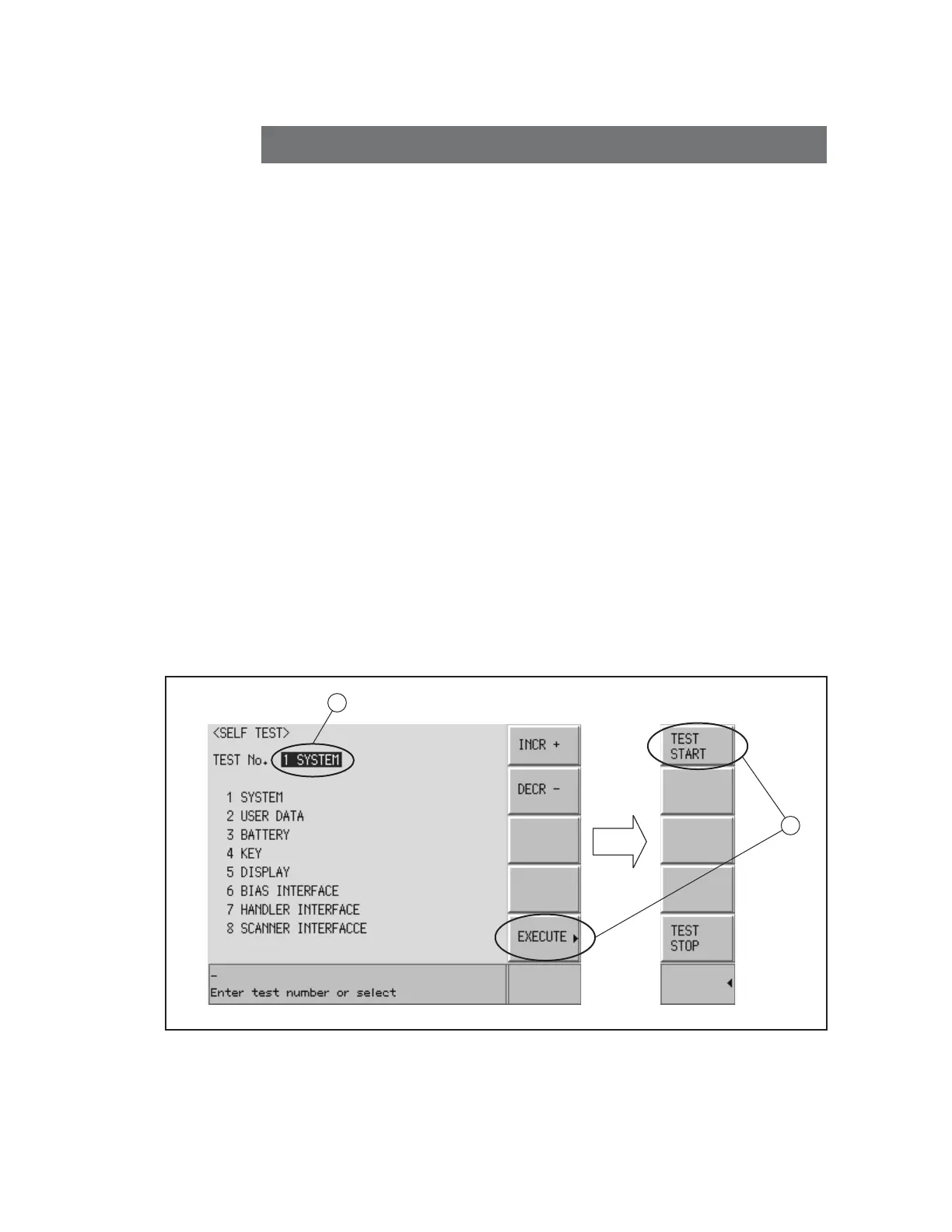

Figure 4-5 Self-test screen and procedure
BIAS INTERFACE Checks the bias interface. (Visual checks only; no result
shown on screen.)
HANDLER
INTERFACE
Checks the handler interface. (Visual checks only; no result
shown on screen.)
SCANNER
INTERFACE
Checks the scanner interface. (Visual checks only; no result
shown on screen.)
Test item Description
