Chapter 6: Replacing Assemblies
To replace the Intel motherboard with the ADLINK motherboard
126
15

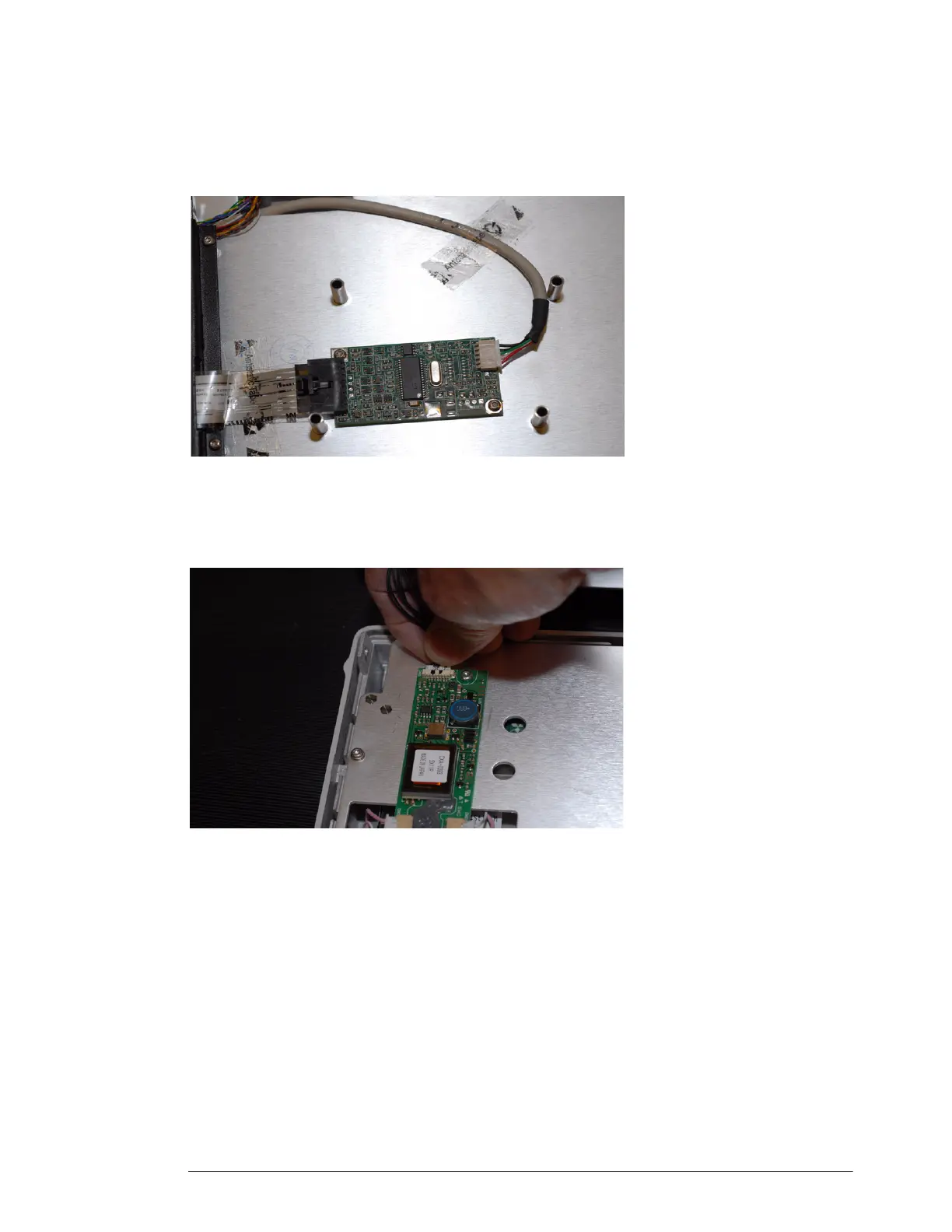

Turn the front panel cover plate over and remove the Touch Screen cable D8104-
61604 and replace with D8104- 61609. Route new cable though the hole. Secure
with tape.
16 Turn front panel cover plate back over and re- assemble. When re- assembling,
torque the ten Torx T10 screws to 5 in- lb.
17 Remove old Back Light cable D8104- 61605 and replace with D8104- 61607.
