Keysight Infiniium MSOS404A - Page 83

Replacing Assemblies 5
S-Series Oscilloscopes Service Guide 83

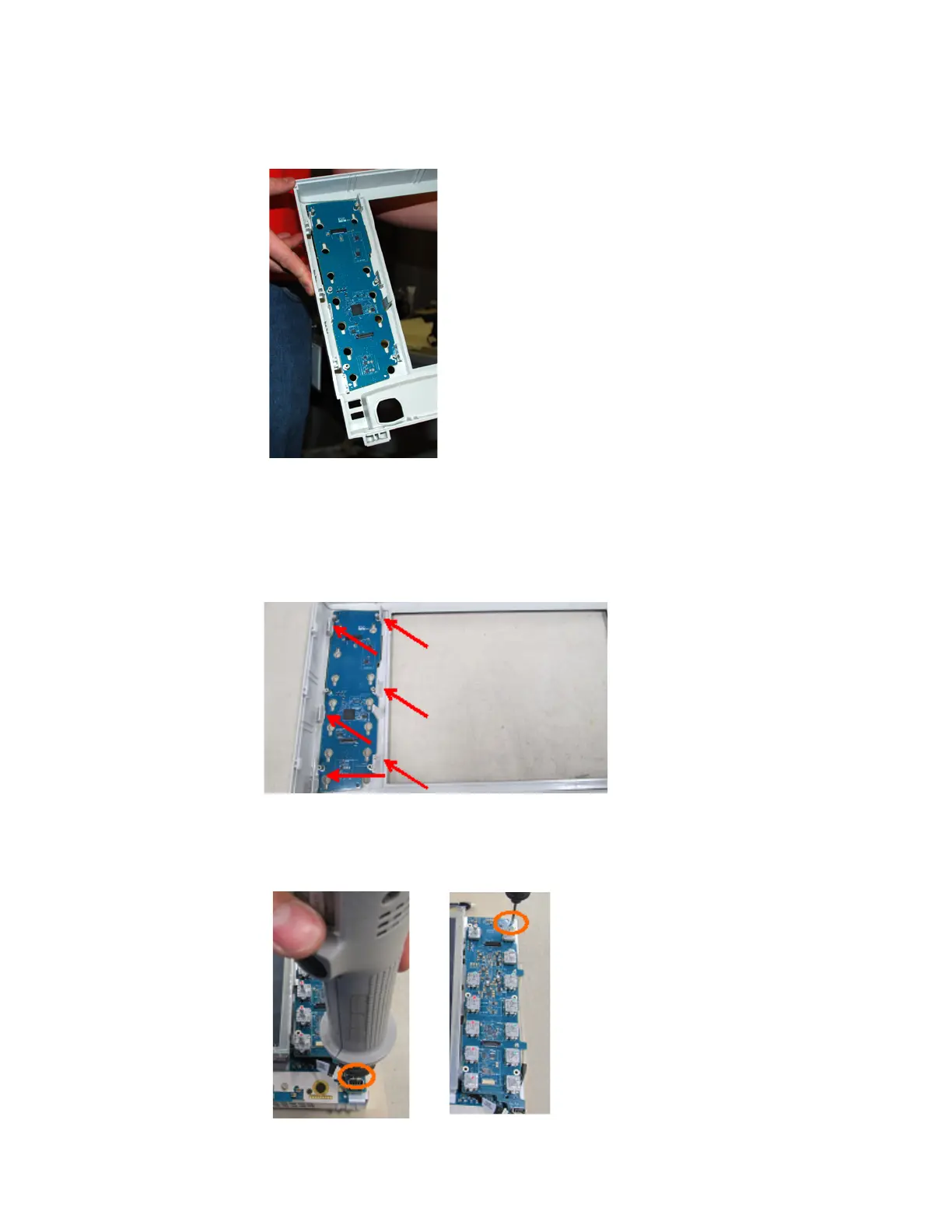

With the front panel bezel removed, you can now remove either the front keyboard
or (rear) keyboard.
1 To remove the front keyboard, disengage the six clips connecting the front
keyboard to the bezel.
2 To begin removing the (rear) keyboard, remove the two M3 screws from the
keyboard.
