Replacing Assemblies 5
S-Series Oscilloscopes Service Guide 93

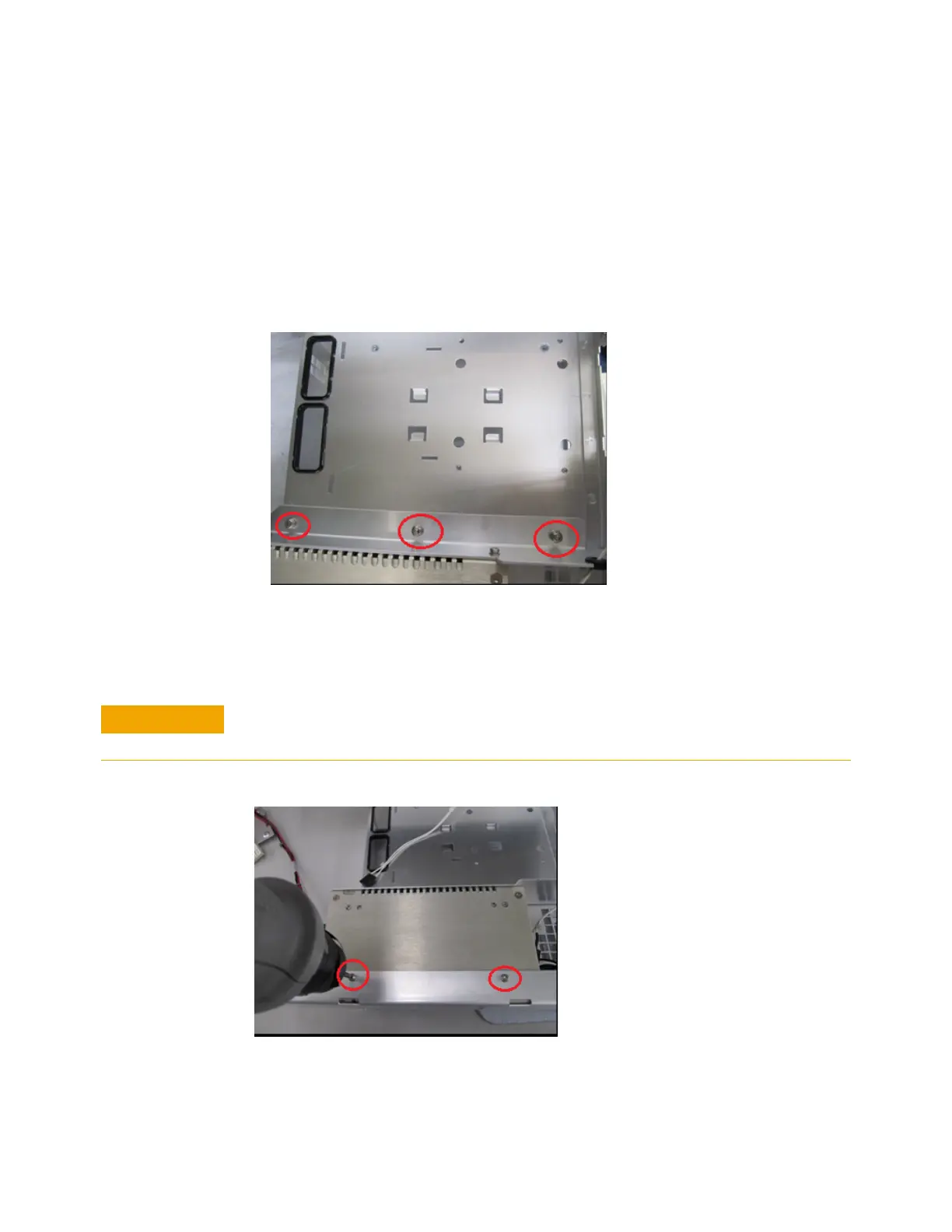

Removing and Replacing the Power Supply
1 Remove the processor assembly as described earlier.
2 Remove the three M3 screws from the power supply bracket. When replacing,
torque to 5 in-lbs.
3 Remove the two M3 screws from the power supply.
When replacing the power supply, be sure to use the M3 screws. Using longer screws
will cause irreparable damage to the power supply.
