Introduction 1

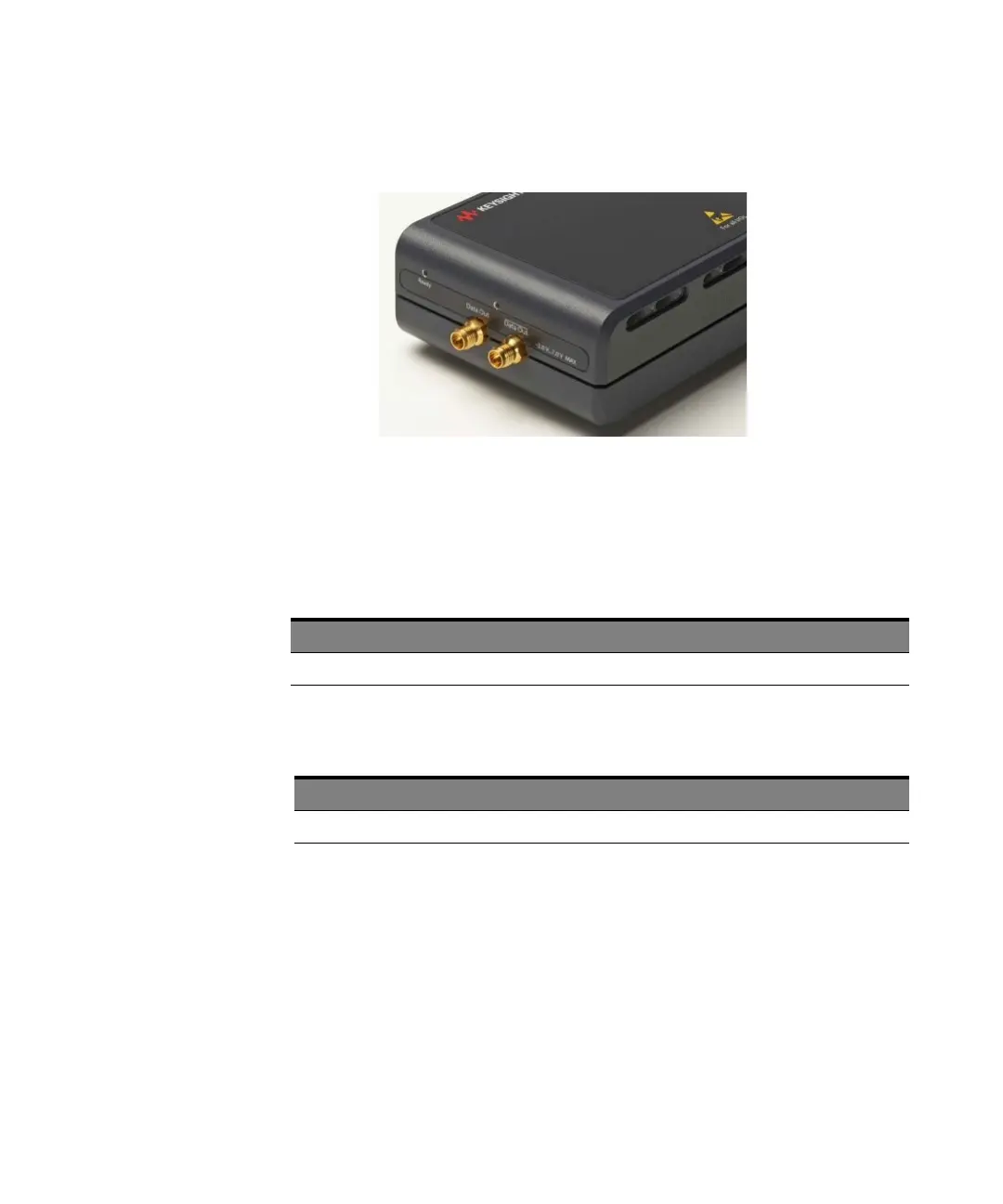

Figure 10 M8058A/M8059A remote head
As displayed in Figure 10 on page -25, the M8058A/M8059A remote head
has the following components.
Table 12 Front Panel LED
Table 13 M8058A/M8059A Front Panel Connector
The back panel of M8058A/M8059A remote head has cables which
connects with each channel of M8042A remote head ports. The length of
these cables are 760 mm.
Ensure that the chassis is NOT powered up or connected to a power
source while making connections to M8058A/M8059A.
Also, make sure NOT to remove the M8058A/M8059A connections when it
is powered on. However, if you wish to remove the M8058A/M8059A
connections, ensure that the instrument is powered off.
Front Panel LED Active when... Color
Ready remote head is operational green
Connector Description
Data Out and /Data Out Connected to DUT
