N5186A MXG and X-Series SA Measurement Guide 37
Basic Measurements
Making Measurements

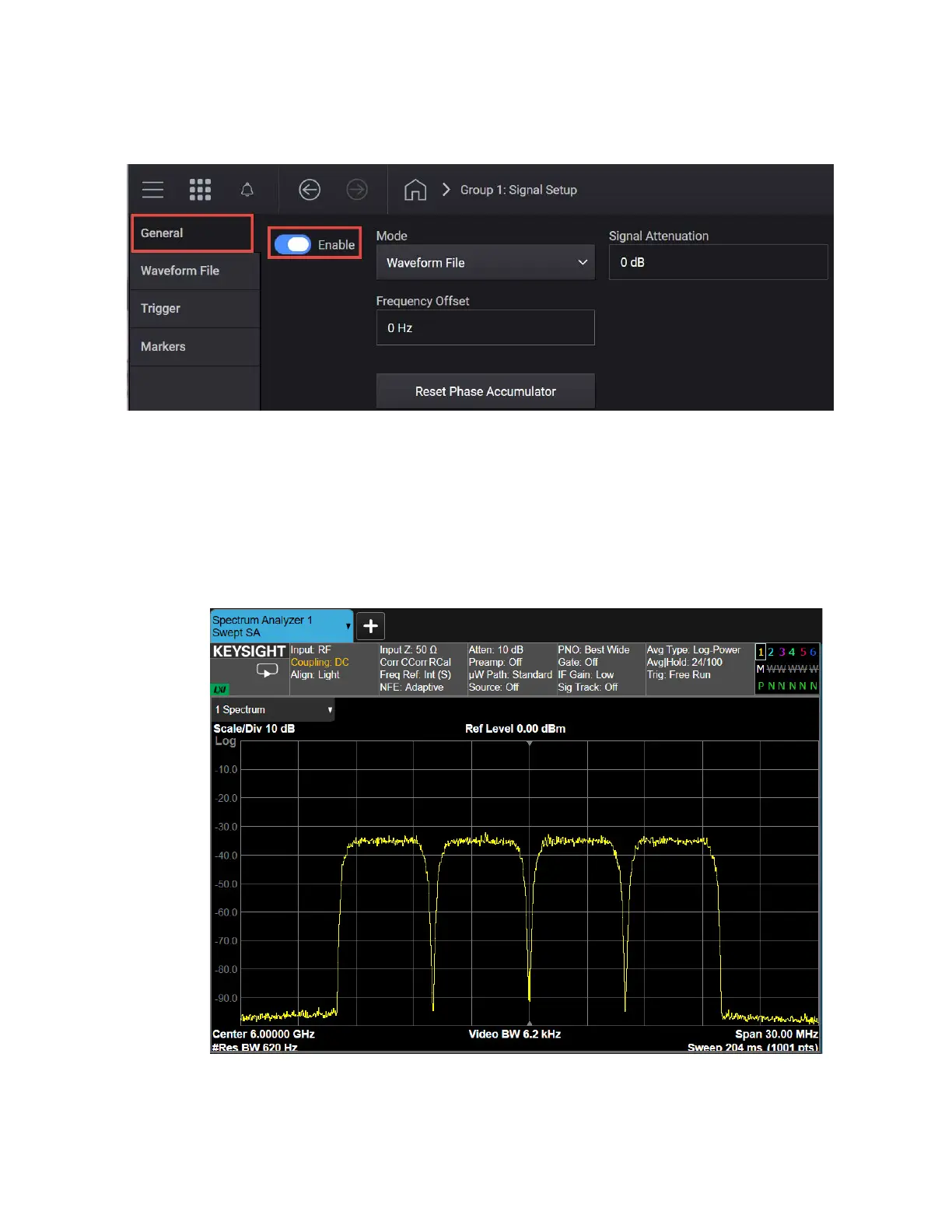

5. Select the General tab > Enable.
6. Select the Home icon and ensure that RF Out is on.
On the Signal Analyzer:
1. Select BW and set Res BW to 620 Hz.
2. Select Frequency and set Center Frequency to 6 GHz and Span to 30 MHz.
3. Observe the WCDMA signal.
