64 N5186A MXG and X-Series SA Measurement Guide
5G New Radio (NR) Measurements
5G Waveform, EVM, and ACP Analysis
resolution DAC bits that can be used, which degrades the signal to
noise ratio and therefore potentially EVM. The trade-off is to balance
between flatness and signal to noise ratio.

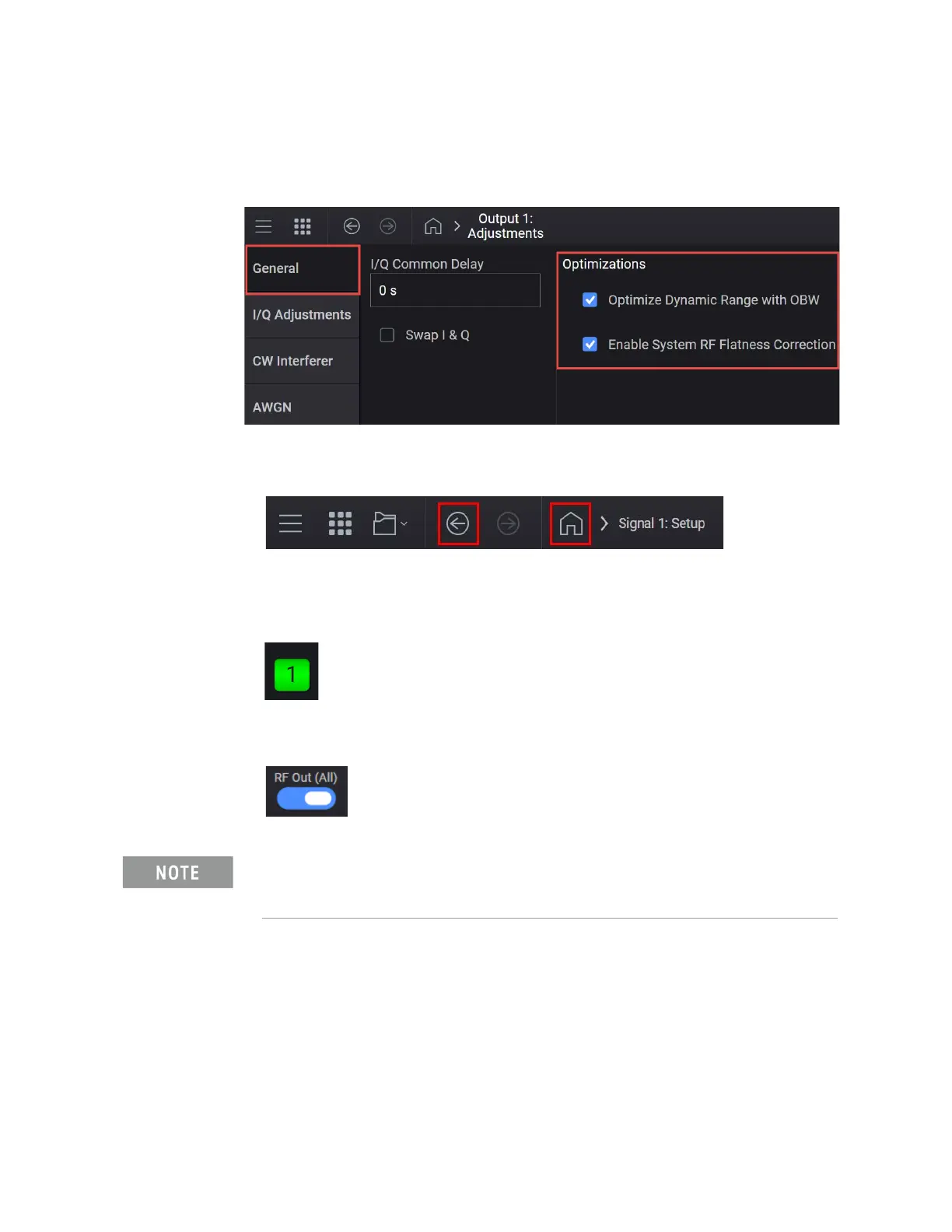

10. Close the Adjustments Setup by either selecting the Back or the Home
icon at the top of the display.
11. Set RF Out to On by selecting the numbered channel indicator switch.
This enables the RF Out for the indicated channels, in this case Channel 1
if using a multi-channel MXG.
12. For multi-channel instruments only: In the top right corner of the display,
set RF Out (All) to On by selecting the switch.
In order to turn on RF for any channel, both the RF Out for the specific
channel (for example, Channel 1 or Channel 2), and RF Out All must be
turned on.
