RF Section Troubleshooting (N8973B, 74B, 75B Analyzers)
Troubleshooting
Since the analyzer is equipped with standard Option FSA, press Mech Atten
and enter 6 dB. The 50 MHz calibrator signal measured on the functioning
Spectrum Analyzer should measure 6 dB lower than the previous step
(~−31 dBm) as shown in Figure 4-16.

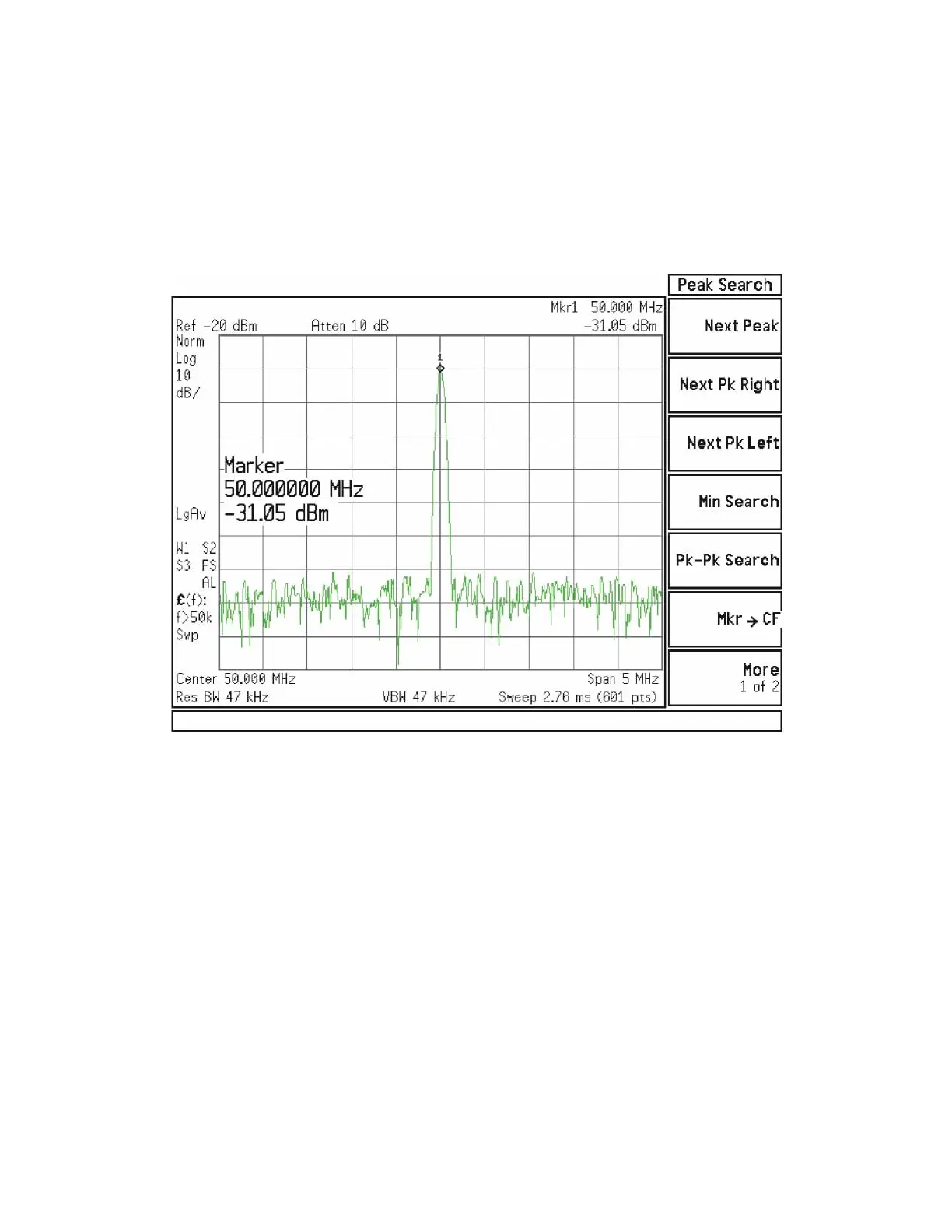

Figure 4-16 50 MHz Calibrator Signal on Output of Attenuator B
(with 6 dB Attenuation)
