Assembly Replacement Procedures
Midplane Assembly
8. Refer to Figure 15-43. Remove the six screws (2) attaching the midplane
assembly (1) to the midplane bracket. The midplane assembly can now
be pulled up from the chassis by leveraging up on the ejectors.

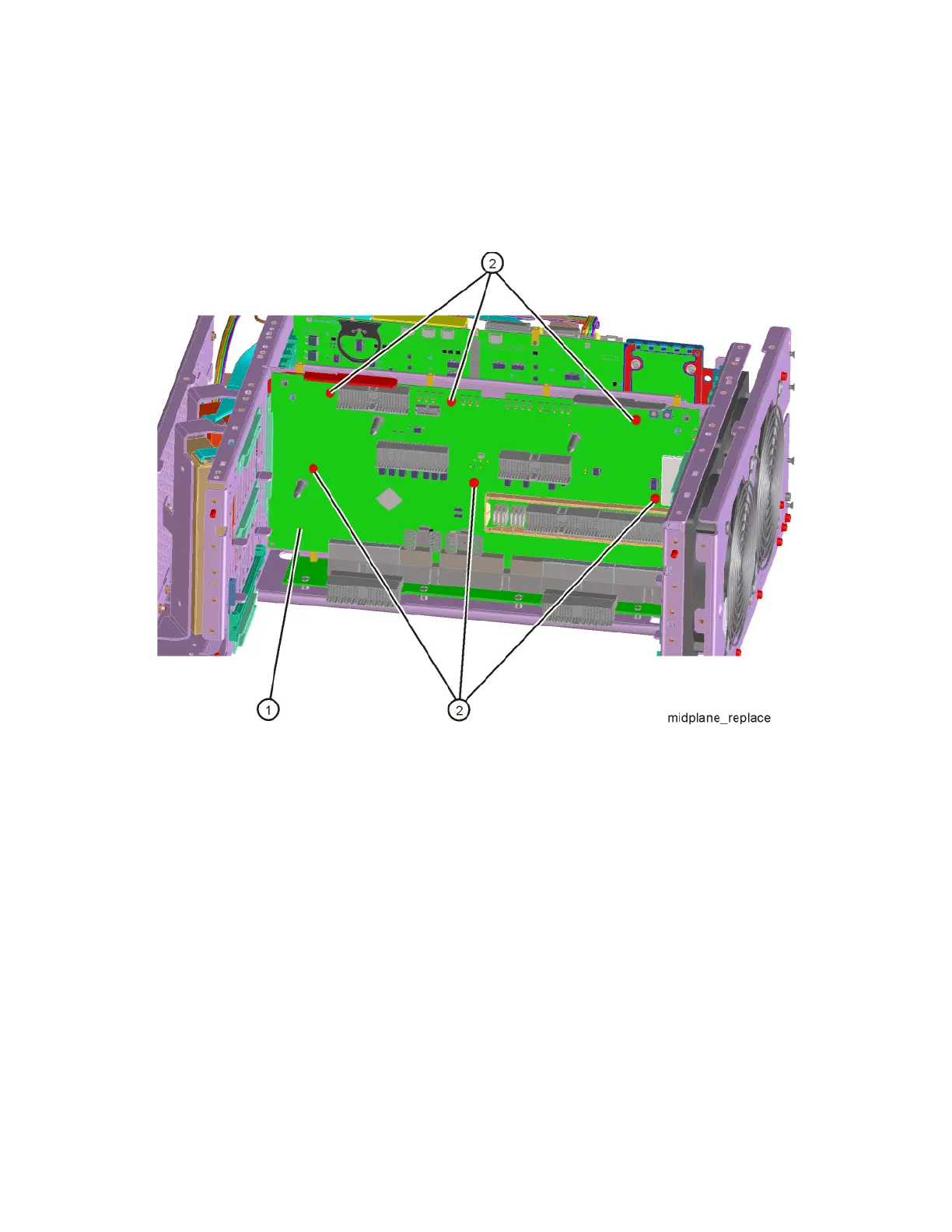

Figure 15-43 Midplane Assembly Removal
