Keysight NFA Series Noise Figure Analyzers Service Guide 465
Assembly Replacement Procedures
Front Frame Assembly

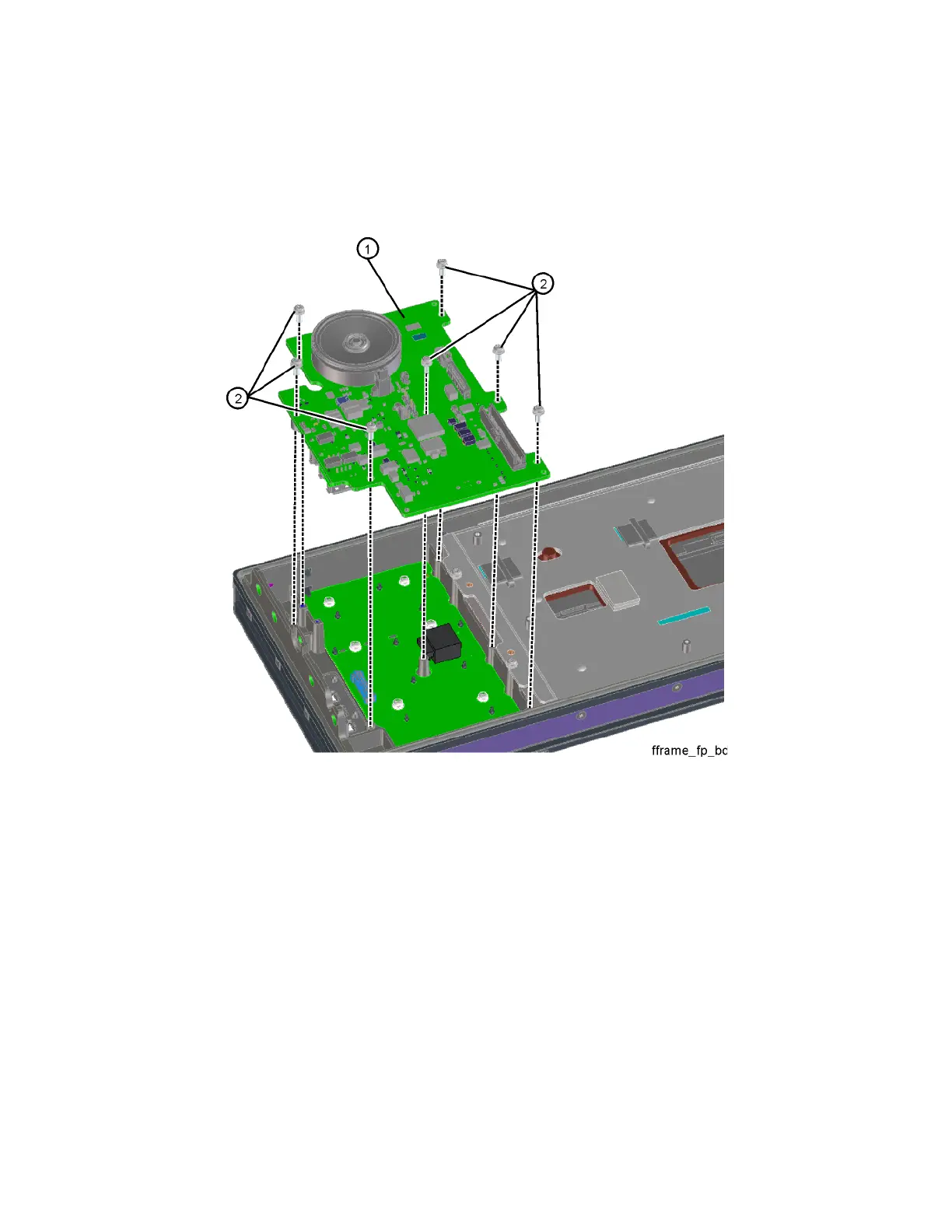

2. Refer to Figure 15-58. To remove the Front Panel Control board (1 ),
remove the seven screws (2) (0515-0372). When replacing the board
torque the screws to 9 inch-pounds.
Figure 15-58 Front Panel Control Board
