Keysight N8976B

Keysight NFA Series Noise Figure Analyzers Service Guide 467
Assembly Replacement Procedures
Front Frame Assembly

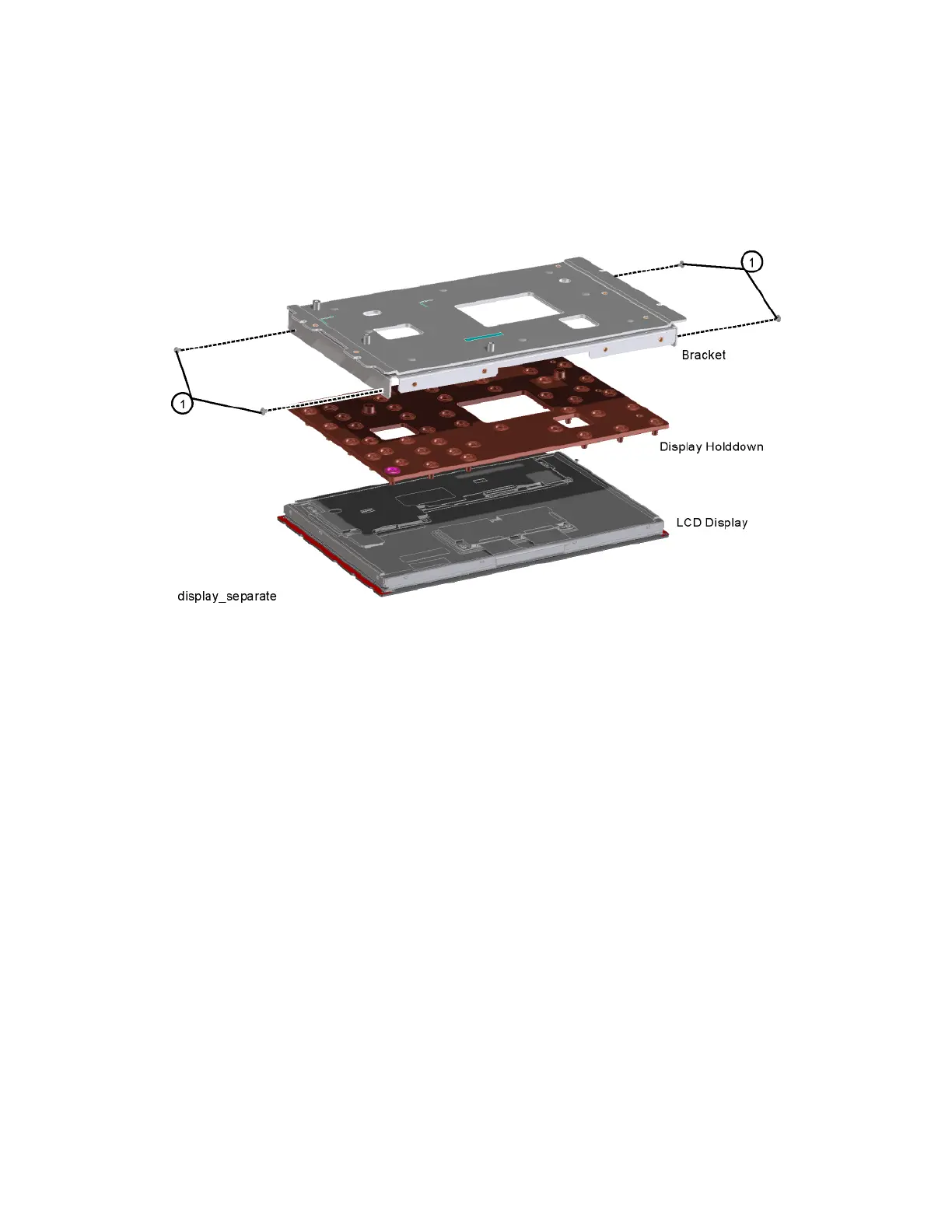

2. Refer to Figure 15-60. To separate the display and display holddown from
the display bracket, remove the four screws (1) (0515-0365). When
reassembling the display assembly, torque the screws to 2 inch-pounds.
Figure 15-60 Display and Bracket Separation
