Keysight N9010B EXA Signal Analyzer Service Guide 143
RF Section Troubleshooting (RF/Microwave Analyzers)
Troubleshooting
Disconnect the W15 or W36 cable from A13J7 on the RF Front End Assembly
(1) 322.5 MHz output. See Figure 4-2.

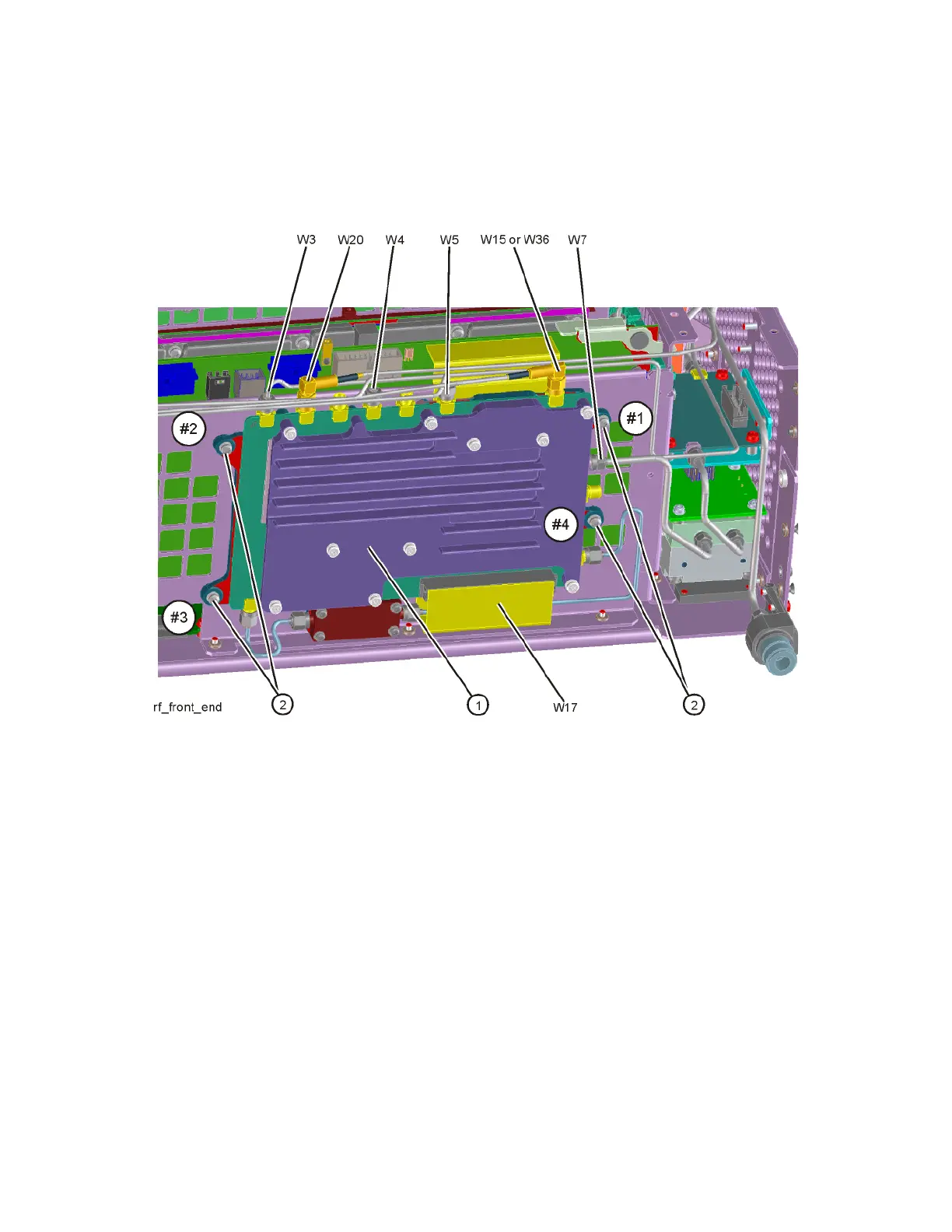

Figure 4-2 W15 or W36 Location
