296 Keysight N9010B EXA Signal Analyzer Service Guide
Analog/Digital IF Troubleshooting
40 MHz BW IF Section
12.The analyzer should read 22.5 MHz at −25 dBm ± 4 dB as shown in Figure
7-18.

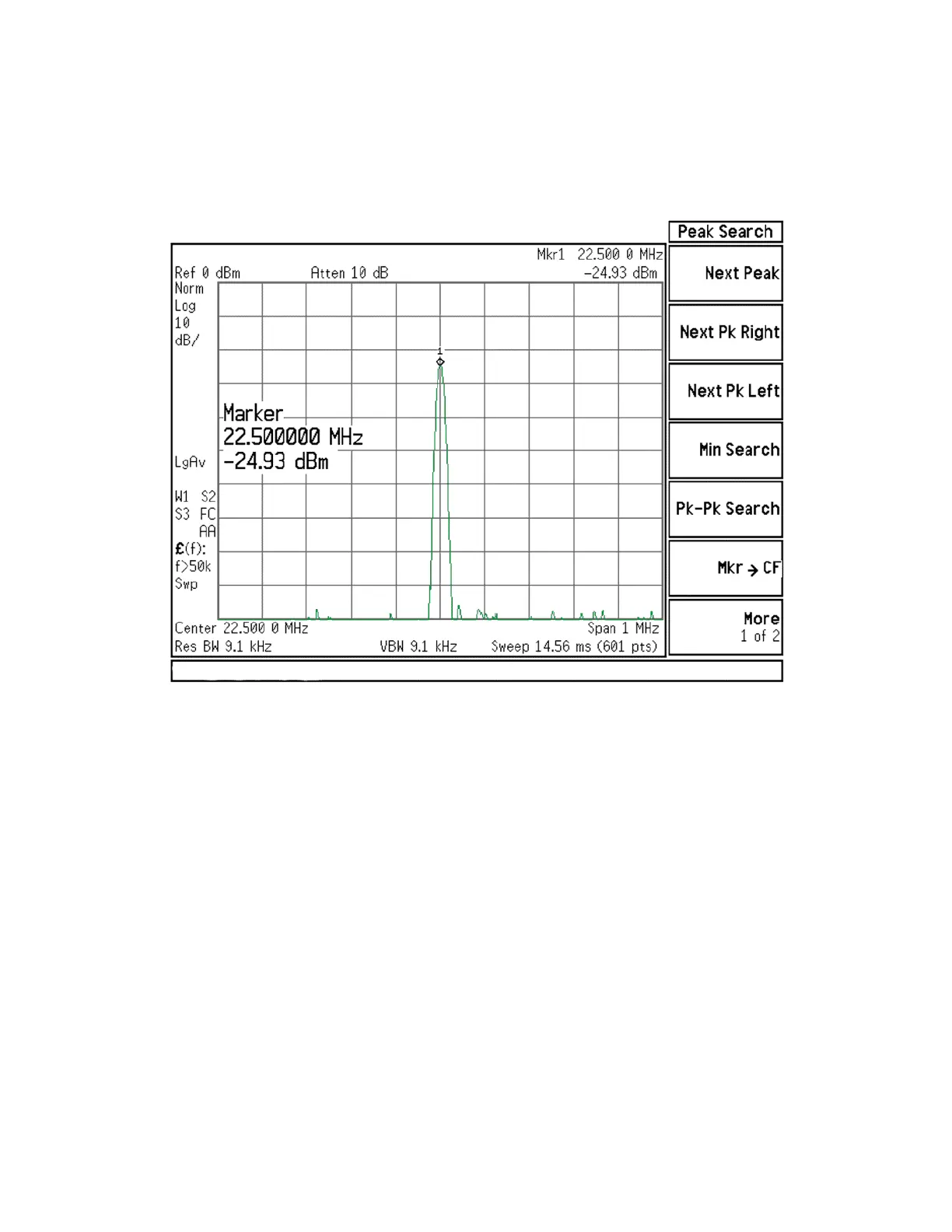

Figure 7-18 22.5 MHz IF Input
13.If the 22.5 MHz signal is not measuring the correct power level, see “A2
Analog I.F. Troubleshooting” on page 265 in this service guide.
14.If the 22.5 MHz signal is within tolerance, carefully reconnect the W41
cable to A3J19.
