520 Keysight N9010B EXA Signal Analyzer Service Guide
Assembly Replacement Procedures
Midplane Assembly
8. Refer to Figure 15-67. Remove the six screws (2) attaching the midplane
assembly (1 ) to the midplane bracket. The midplane assembly can now
be pulled up from the chassis by leveraging up on the ejectors.

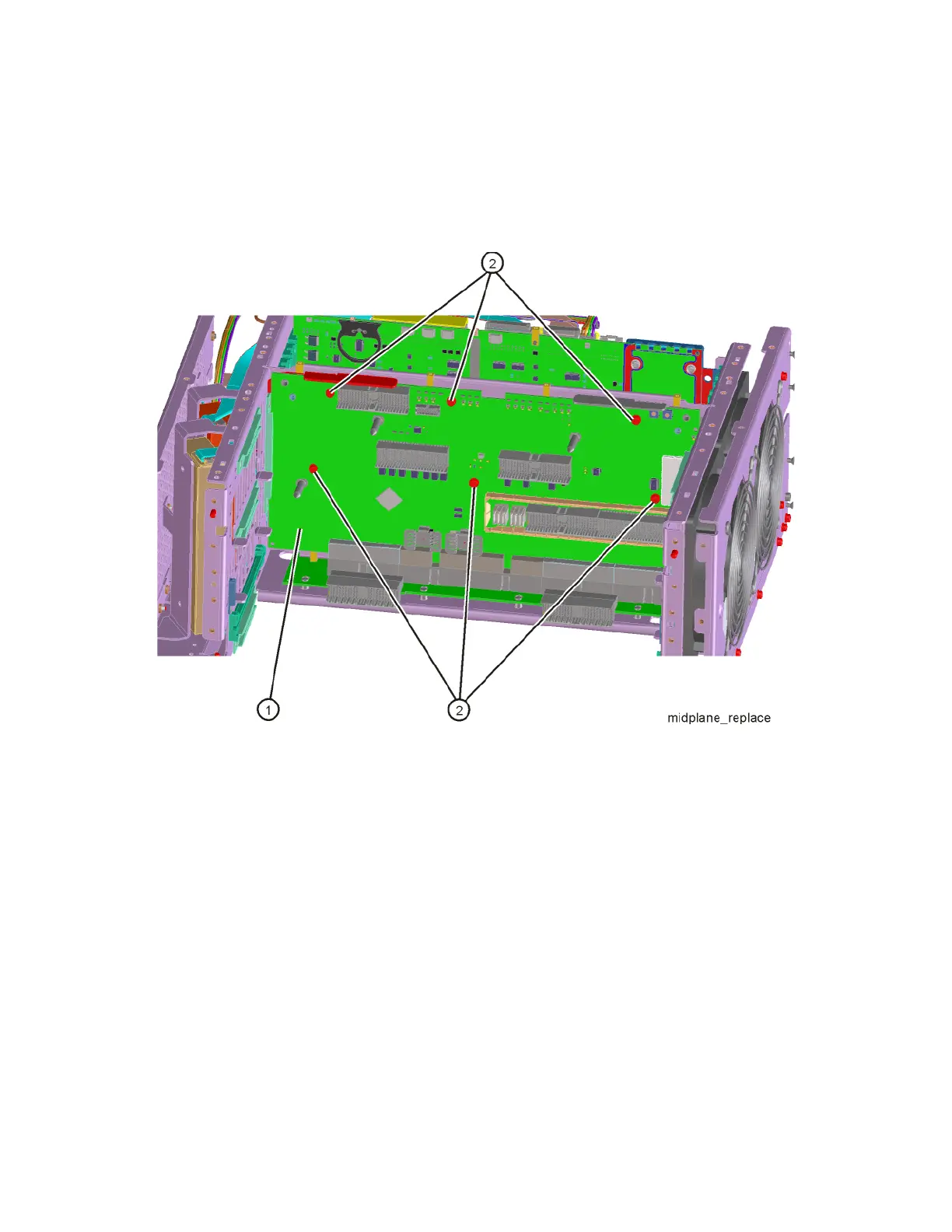

Figure 15-67 Midplane Assembly Removal
