Keysight N9010B EXA Signal Analyzer Service Guide 539
Assembly Replacement Procedures
Front Frame Assembly
Front Panel Cables
1. Refer to Figure 15-78. Remove cables A1W1 and A1W2.
2. When replacing the cables, dress in the appropriate cable clamps.
Front Panel Control Board and Shield
1. Refer to Figure 15-81. To remove the Front Panel Control Shield (1),
remove the two screws (2) (0515-1946) and the two screws (3)
(0515-0372).

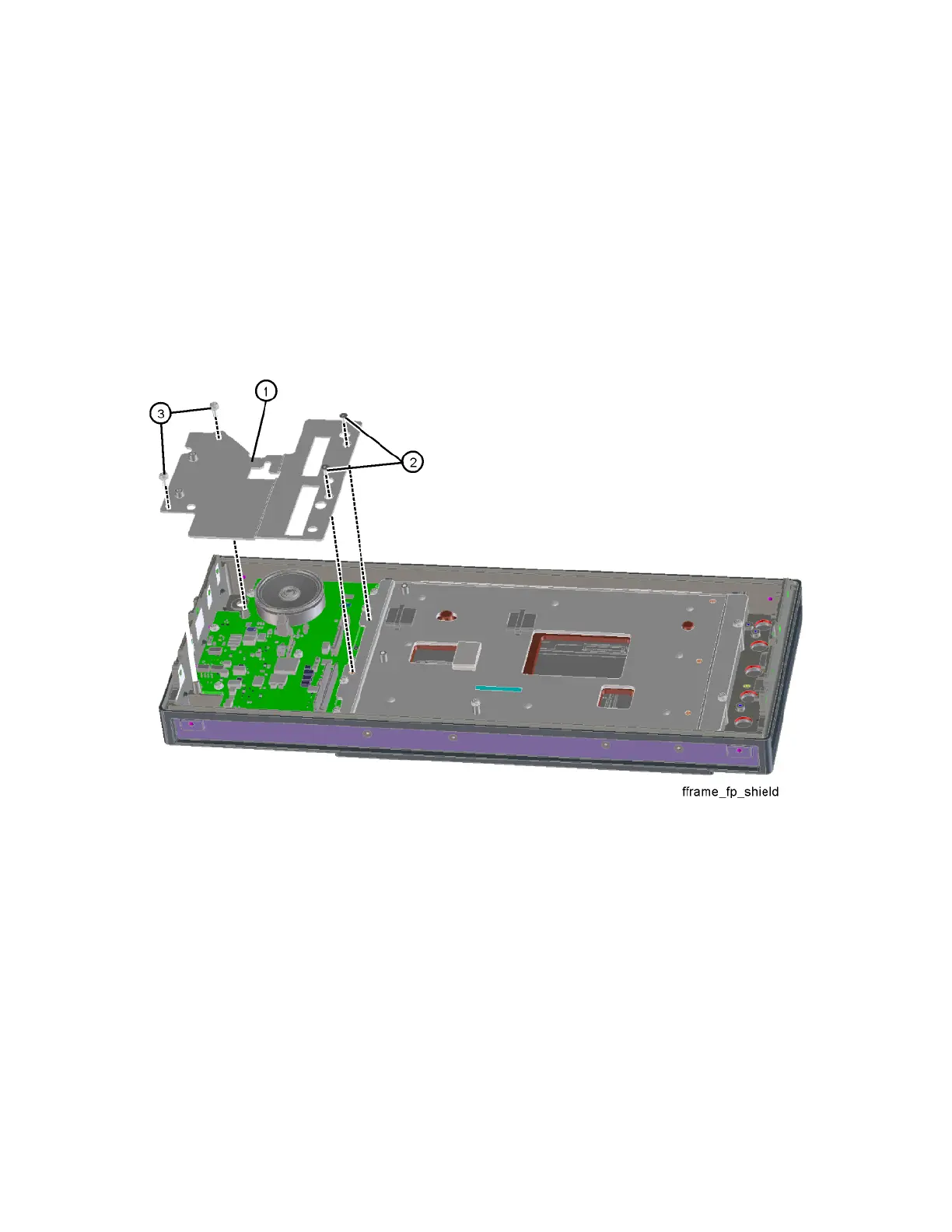

Figure 15-81 Front Panel Control Shield and Board Removal
