542 Keysight N9010B EXA Signal Analyzer Service Guide
Assembly Replacement Procedures
Front Frame Assembly

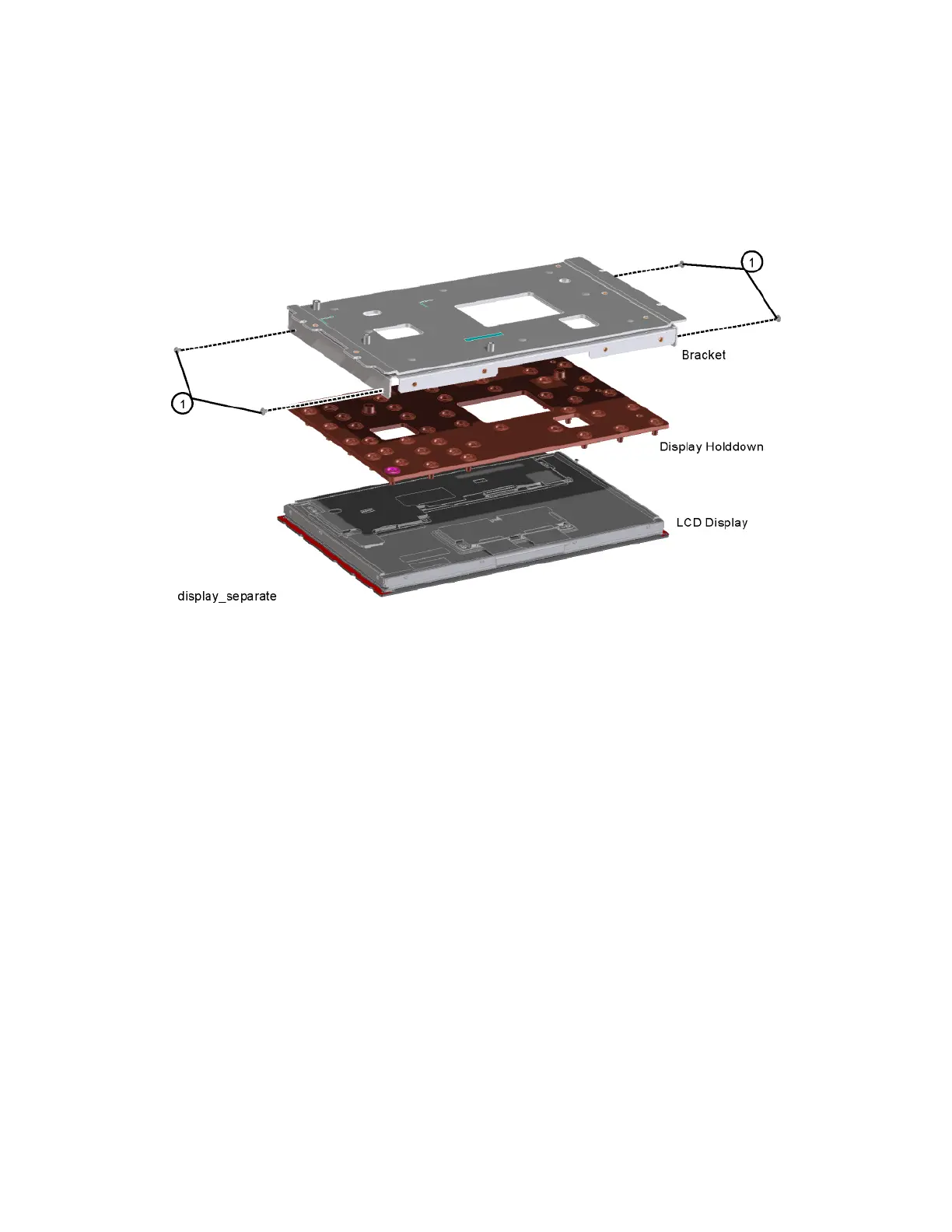

2. Refer to Figure 15-84. To separate the display and display holddown from
the display bracket, remove the four screws (1) (0515-0365). When
reassembling the display assembly, torque the screws to 2 inch-pounds.
Figure 15-84 Display and Bracket Separation
