Keysight PNA-X Series Configuration Guide

Page 3
Find us at www.keysight.com

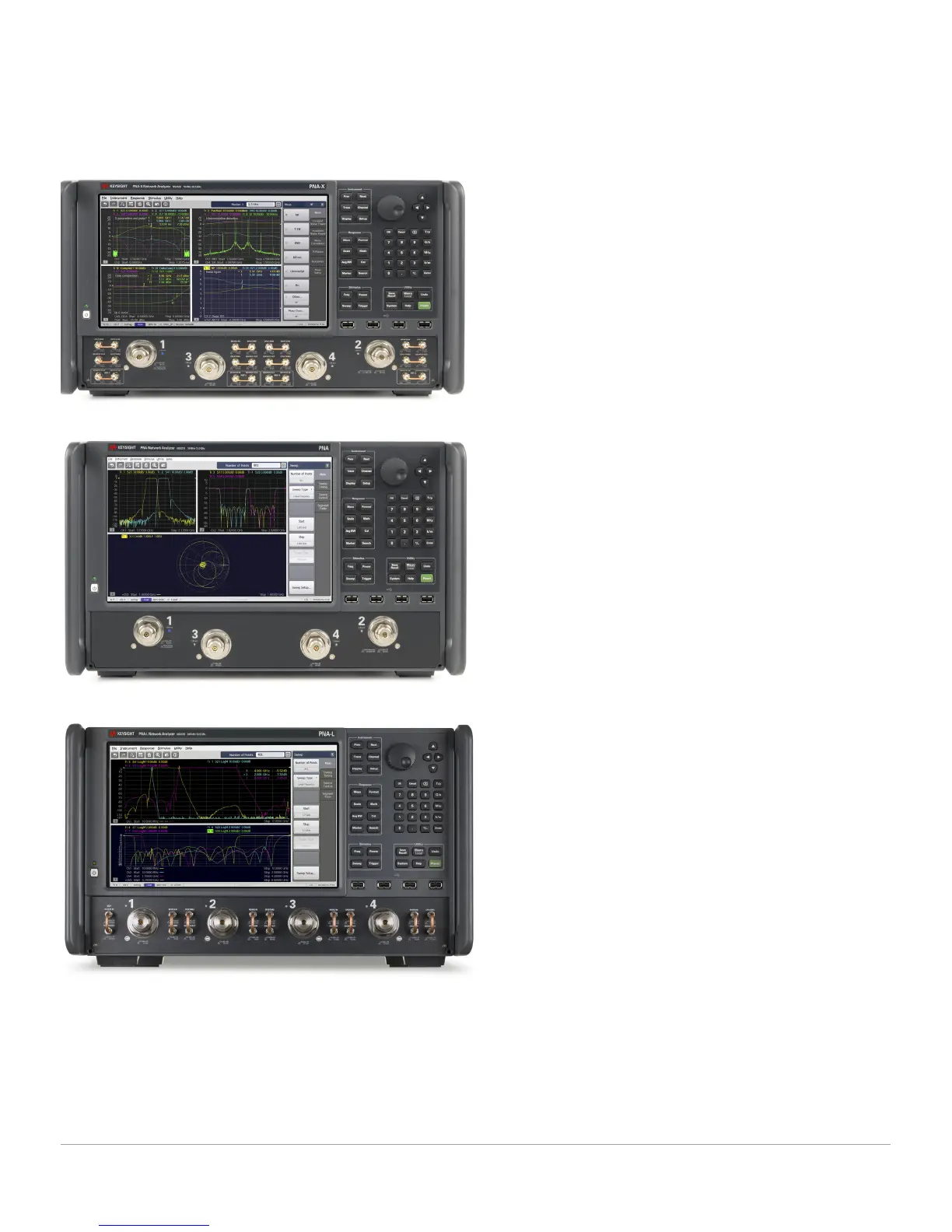

PNA-X Series
– N5249B 900 Hz/10 MHz to 8.5 GHz
– N5241B 900 Hz/10 MHz to 13.5 GHz
– N5242B 900 Hz/10 MHz to 26.5 GHz
– N5244B 900 Hz/10 MHz to 43.5 GHz
– N5245B 900 Hz/10 MHz to 50 GHz
– N5247B 900 Hz/10 MHz to 67 GHz
This configuration guide describes standard configurations, options, accessories, upgrade kits and compatible peripherals for the PNA
Family microwave network analyzers. This guide should be used with the Keysight Technologies, Inc. PNA Family data sheets for a
complete description of these analyzers.
PNA Series
– N5221B 900 Hz/10 MHz to 13.5 GHz
– N5222B 900 Hz/10 MHz to 26.5 GHz
– N5224B 900 Hz/10 MHz to 43.5 GHz
– N5225B 900 Hz/10 MHz to 50 GHz
– N5227B 900 Hz/10 MHz to 67 GHz
PNA-L Series
– N5239B 300 kHz to 8.5 GHz
– N5231B 300 kHz to 13.5 GHz
– N5232B 300 kHz to 20 GHz
– N5234B 10 MHz to 43.5 GHz
– N5235B 10 MHz to 50 GHz

Keysight PNA-X Series Specifications

General

Output Power	+13 dBm (typical)
Number of Ports	2 or 4
Dimensions	426 mm (W) x 470 mm (D)
Power Requirements	100 to 240 VAC, 50/60 Hz
Frequency Range	10 MHz to 26.5 GHz (varies by model)
