U9361C/F/G/M RCal Measurement Guide 75
Making Measurements
Using RCal as a Scalar Network Analyzer
This will result in the sweep points being space 1 MHz apart.

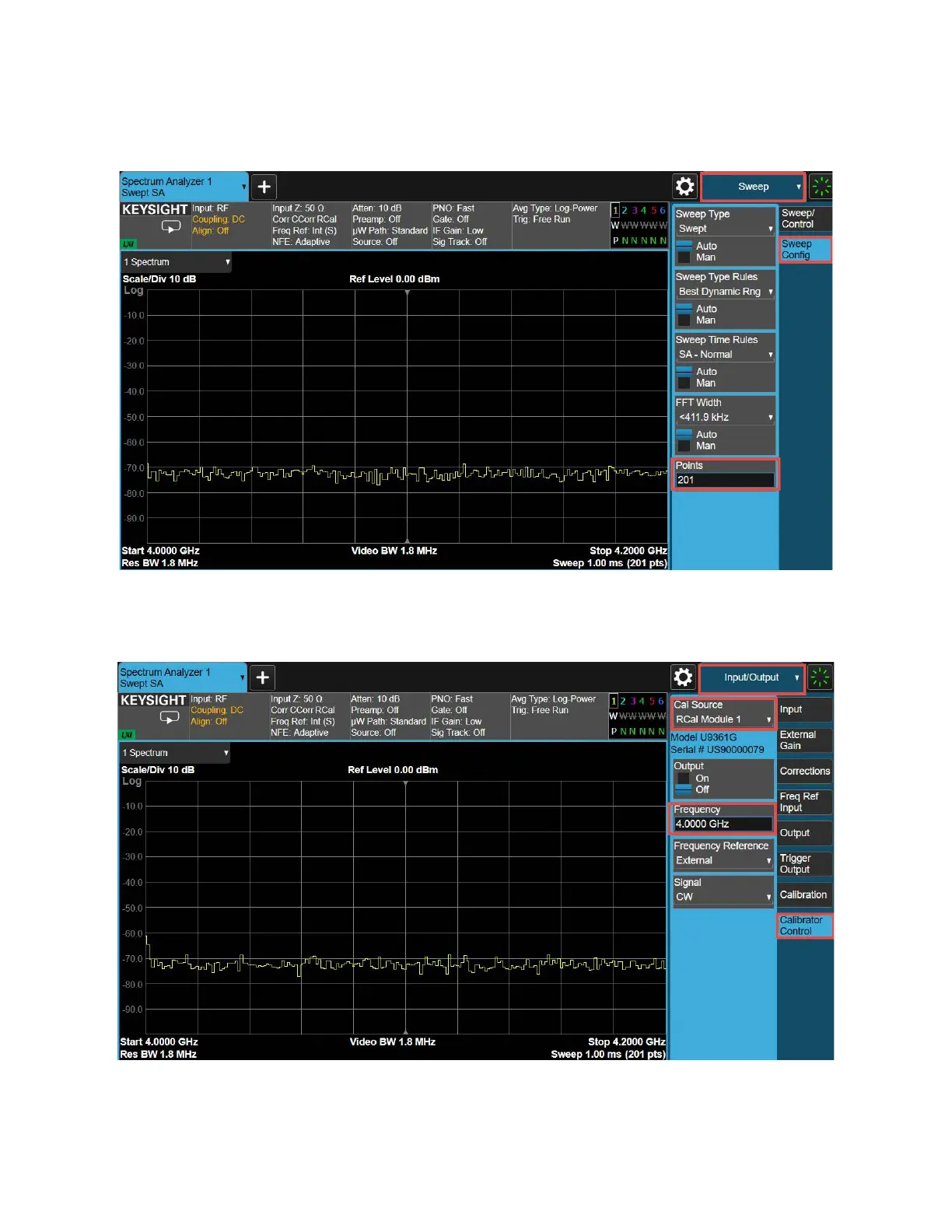

7. Select Input/Output > Calibrator Control tab > Cal Source to
RCal Module 1 > Frequency to 4 GHz.
8. If your RCal unit has Option CPX, ensure Signal is set to CW.
