Maintenance
368
Lamps
Operation
僅 Using a flat-blade screwdriver, gently
pry the lamp assembly from interior.
僅 Remove the cover from the lamp
assembly.
僅 Remove the bulb by pulling it straight
out.
僅 Install a new bulb in the socket.
僅 Install the cover to the lamp assembly.
僅 Install the lamp assembly to interior.
Prior to working on the Interior lamps,
ensure that the "OFF" button is
depressed to avoid burning your fingers
or receiving an electric shock.

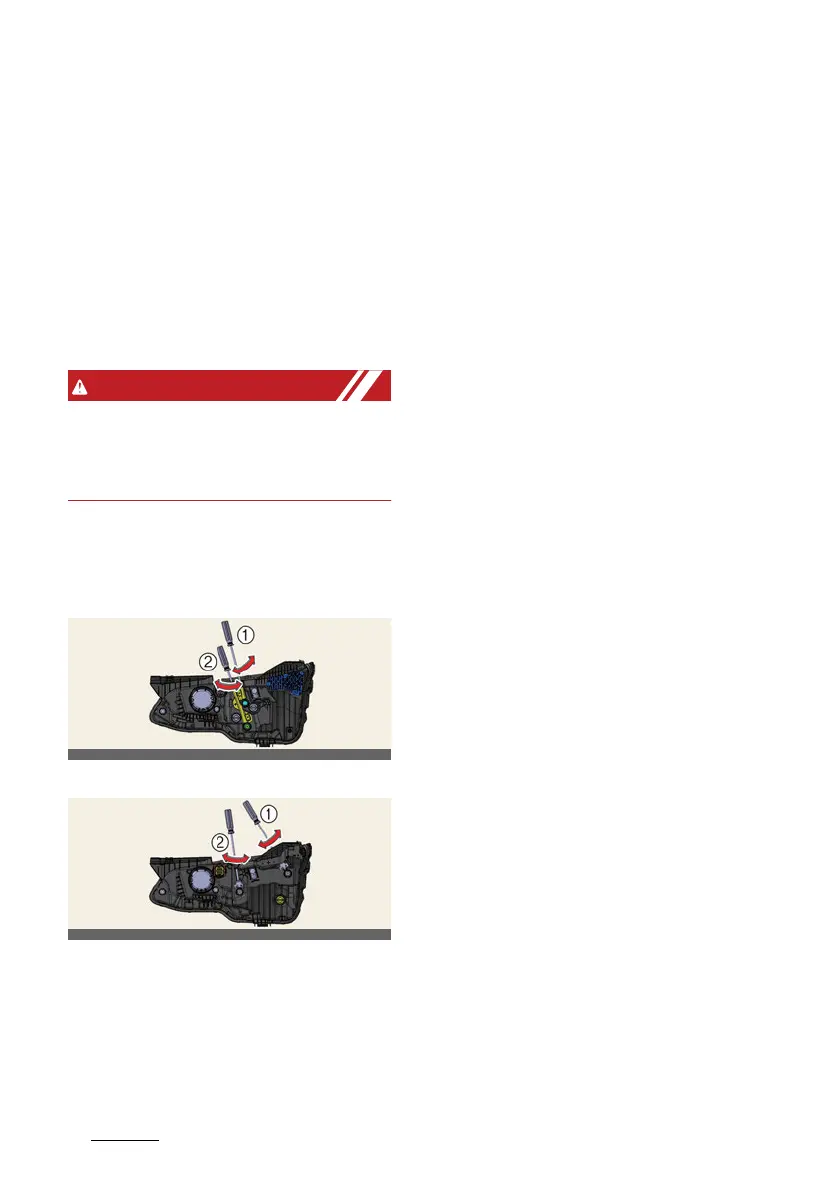

Headlamp aiming (for Europe)
Headlamp aiming
Type A
Type B
Operation
僅 Inflate the tires to the specified pres
-
sure and remove any loads from the
vehicle except the driver, spare tire,
and tools.
僅 The vehicle should be placed on a flat
floor.
僅 Draw vertical lines (Vertical lines pass
-
ing through respective head lamp
centers) and a horizontal line (Hori
-
zontal line passing through center of
head lamps) on the screen.
僅 With the head lamp and battery in
normal condition, aim the head lamps
so the brightest portion falls on the
horizontal and vertical lines.
僅 To aim the low beam left or right, turn
the screwdriver (1) clockwise or coun
-
terclockwise. To aim the low beam up
or down, turn the screwdriver (2)
clockwise or counterclockwise.
