Lamps
Head lamp low beam (LHD Vehicle)

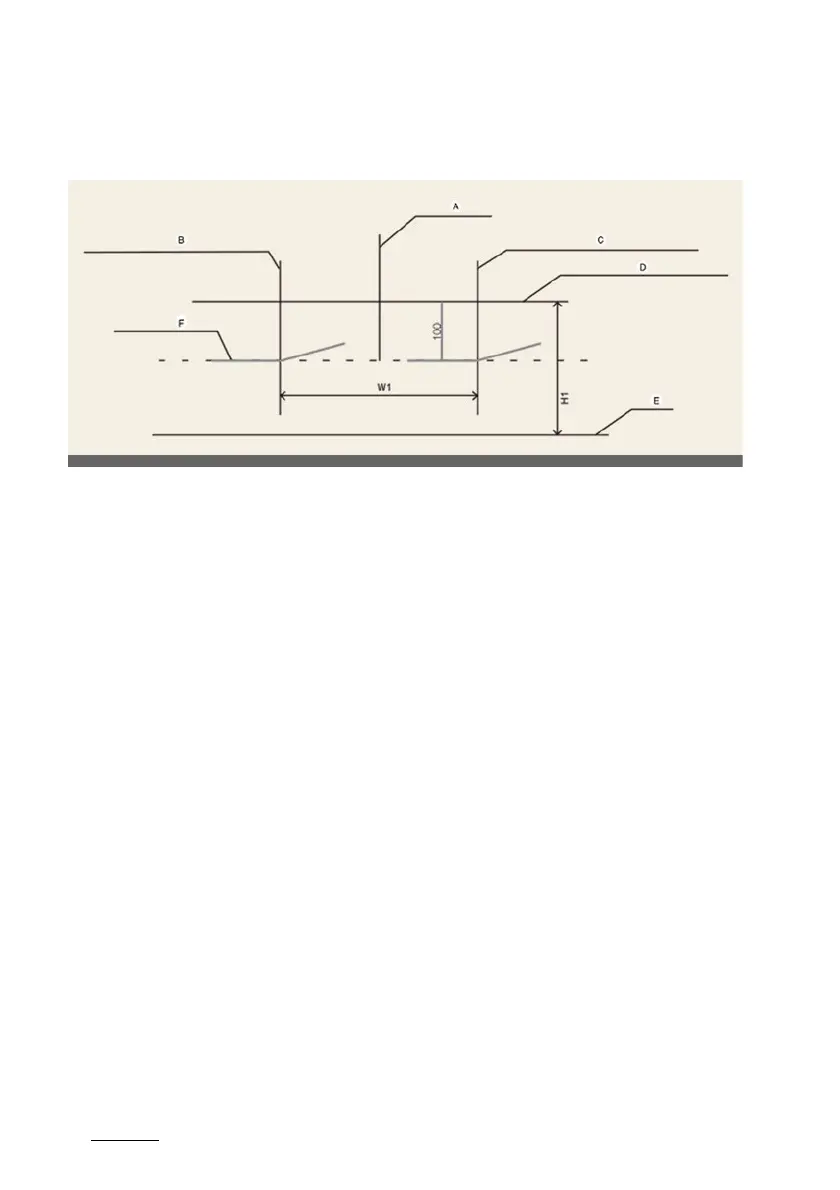

Based on 10m screen
僅A: Vehicle axis
僅 B: Vertical line of the left head lamp bulb center
僅 C: Vertical line of the right head lamp bulb center
僅 D: Horizontal line of head lamp bulb center
僅E: Ground
僅 F: Cut-Off line
Operation
僅 Turn the low beam on without driver aboard.
僅 The cut-off line should be projected in the cut-off line shown in the picture.
僅 When aiming the low beam, vertical aiming should be adjusted after adjusting the
horizontal aiming.
僅 Disengage the parking brake and put the gear in N (Neutral), in addition, if head
-
lamp leveling device is equipped, adjust the headlamp leveling device switch to '0'.
