How to check the symbol on the charging label (For Europe)

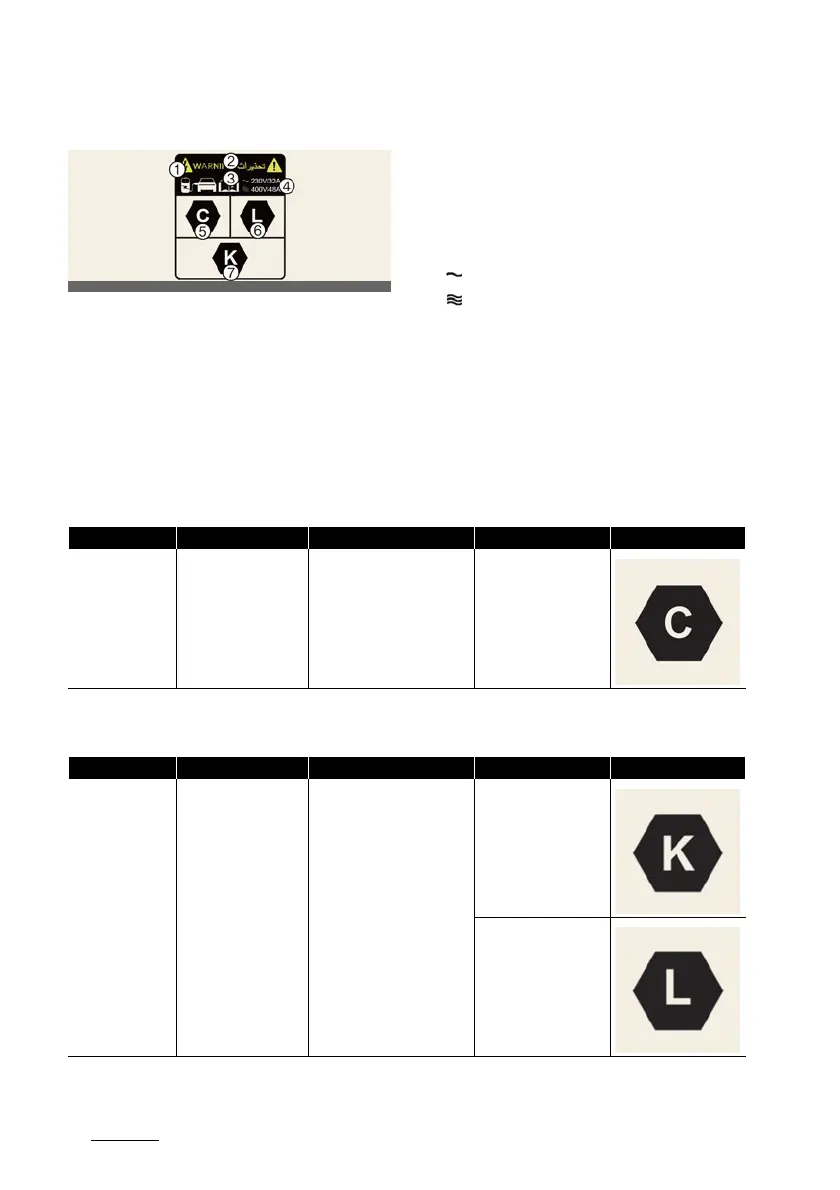

Electric charging label (For Europe)
The electric charging label is attached
on the charging door.
1. Warning for high voltage
2. Symbol for charging door
3. For further details, refer to "How to
check the symbol on the charging
label (For Europe) (if equipped)" on
page 9-7.
4. Charging voltage and current
( ): AC Single phase
( ): AC 3 phase
5~7: Symbols for charging type. For fur
-
ther details, refer to "Electric charging
label symbol table (For Europe)" on page
9-8.
Electric charging label symbol table (For Europe)
AC and Trickle charger charging
DC charging
Supply Type Configuration Type of Accessory Voltage range Identifier
AC 7P
Vehicle connector and vehicle
inlet
≤480V RMS
Supply Type Configuration Type of Accessory Voltage range Identifier
DC 7P COMBO
Vehicle connector and vehicle
inlet
50V to 500V
200V to 920V
