KIC Explorer - Confirming Auto-Focus Recipe; Confirm First Guess Recipe Screen; Manual Oven Recipe Entry Procedure

KIC 2000 v2.4.0.x
30 KIC 2000 User Manual
If the user selects YES, they will be prompted to: Confirm the First Guess Recipe. See Figure 42.

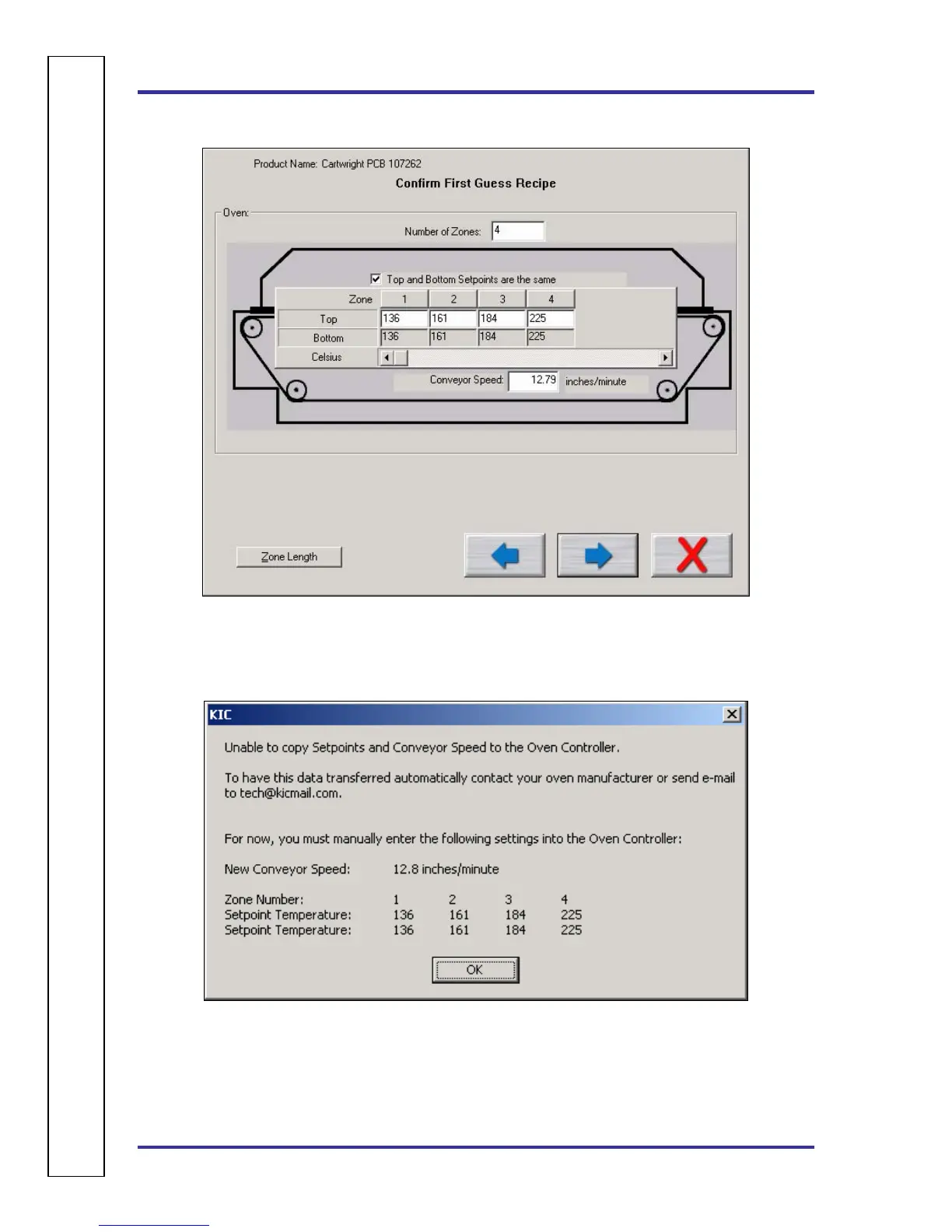

Figure 42: Run a Profile – Auto Focus screen #3
Confirm the recipe and select the Forward Arrow button. If there is no communication with the oven
controller, the following dialog box appears: The user must manually enter the recipe information on the
oven. See Figure 43.
Figure 43
If there is communication with the oven, then the recipe is copied directly to the oven.
